Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Take care not to bend or scratch the trim and panels.

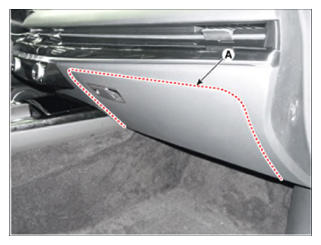

- Open the glove box (A).

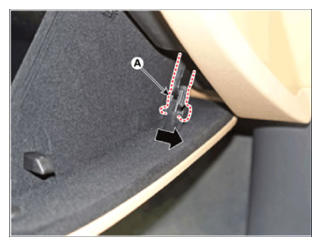

- Using a remover, remove the lock pin and then remove the air damper (A).

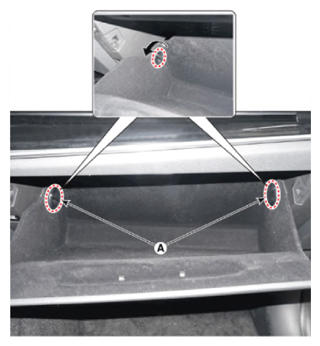

- Pull out the both sides stopper (A) from the glove box.

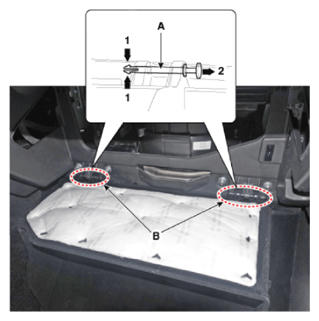

- Remove the lock pins (A) and then remove the glove box (B).
- Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
