Home
>>
Genesis
>>
2021
>>
G80 2.5T Advanced, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 2.5L (6 Of 6)
>>
DTC U0164-F0: Lost Communication With HVAC Control Module (FATC CAN Time Out)
>>
Troubleshooting
>>
Diagnostic Flow-chart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

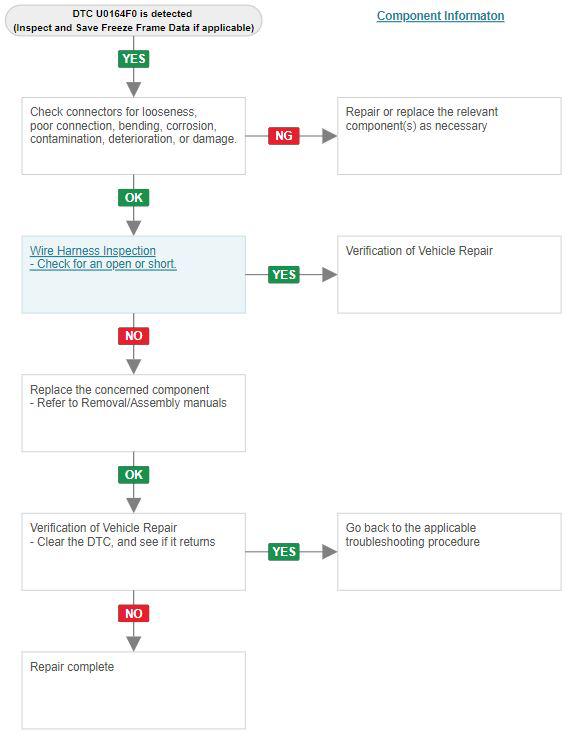

Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
