Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the rear seat (LH).
(Refer to REPLACEMENT Body - "Rear Seat Assembly")

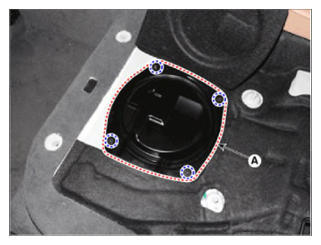

- Remove the fuel pump service cover (A) after loosening the mounting screws.

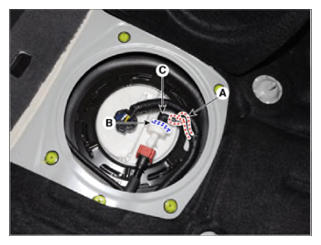

- Disconnect the fuel pressure sensor connector (A).
- Disconnect the fuel pressure sensor fixing pin (B).
- Disconnect the fuel pressure sensor (C).
