Repair Procedures: Installation

  1. Lightly tighten the inhibitor switch mounting nut (A) and bolts (B).
    G15547891Courtesy of HYUNDAI MOTOR AMERICA

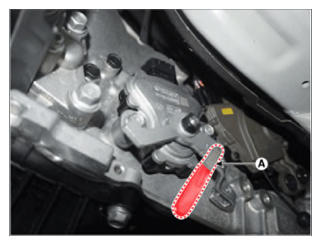

  2. Insert the special service tool (SST No.: 09480-D2100) to the parking switch and parking switch lever "P" position hole.
    G15547892Courtesy of HYUNDAI MOTOR AMERICA

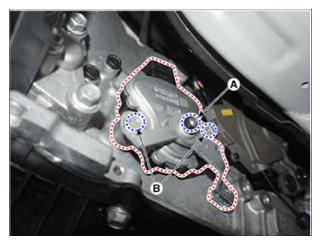

  3. Tighten mounting bolts (B) to the specified torque after tightening the parking switch mounting nut (A).

    Tightening torque:

    1. 16.7-25.5 N.m (1.7 ~ 2.6 kgf.m, 12.3 - 18.8 lb-ft)
    2. 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
      G15547893Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the special service tool (SST No.: 09480-D2100).
    G15547894Courtesy of HYUNDAI MOTOR AMERICA

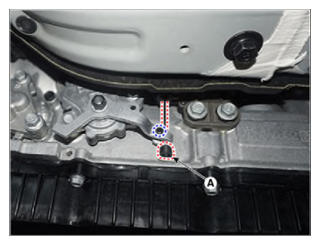

  5. Tighten the screw after installing parking release cable (A) to the parking switch.
    G15547895Courtesy of HYUNDAI MOTOR AMERICA

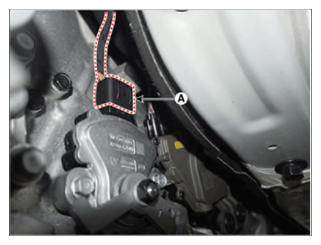

  6. Connect the parking switch connector (A).
    G15547896Courtesy of HYUNDAI MOTOR AMERICA
  7. Tighten the mounting bolts (A, B) after installing the transmission bracket (C).

    Tightening torque:

    1. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)
    2. 39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb-ft)

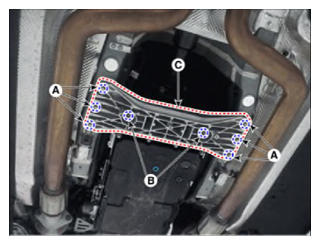

      [2WD]

      G15547897Courtesy of HYUNDAI MOTOR AMERICA

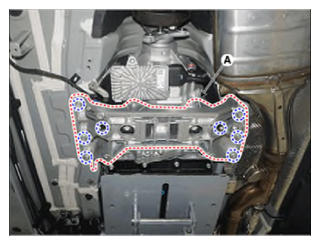

      [4WD]

      G15547898Courtesy of HYUNDAI MOTOR AMERICA
  8. Install the rear propeller shaft.

    (Refer to Driveshaft and axle - "PROPELLER SHAFT ")

  9. Connect the negative (-) battery cable.
