Repair Procedures: Removal

Disconnect the battery negative terminal.
Open the trunk.

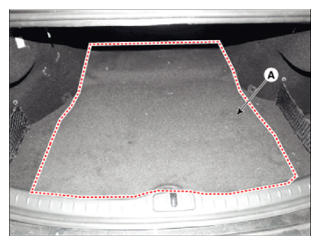

Remove the luggage covering mat (A).

Courtesy of HYUNDAI MOTOR AMERICA

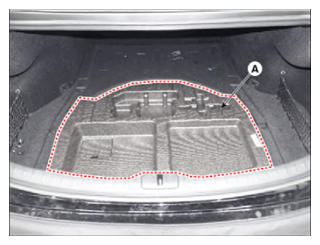

Remove the luggage center tray (A).

Courtesy of HYUNDAI MOTOR AMERICA

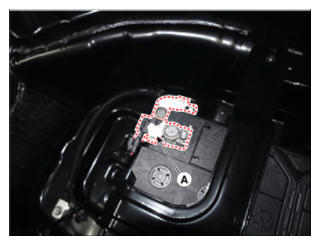

Disconnect the battery negative terminal (A).
Tightening torque:

5.9 - 11.8 N.m (0.6 - 1.2 kgf.m, 4.3 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

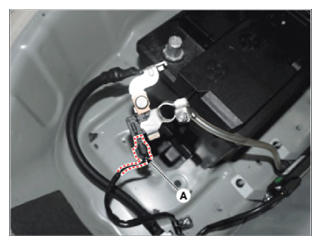

Disconnect the battery sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

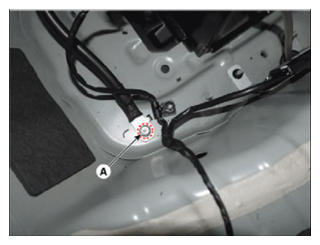

After removing the battery sensor, remove the mounting bolt (A).
Tightening torque:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
