Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

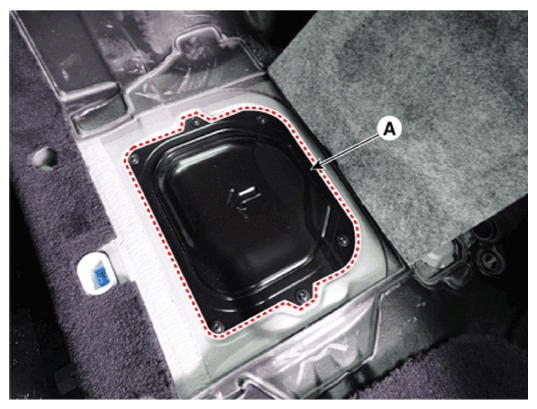

- Remove the fuel pump service cover (A) after loosening the screws.

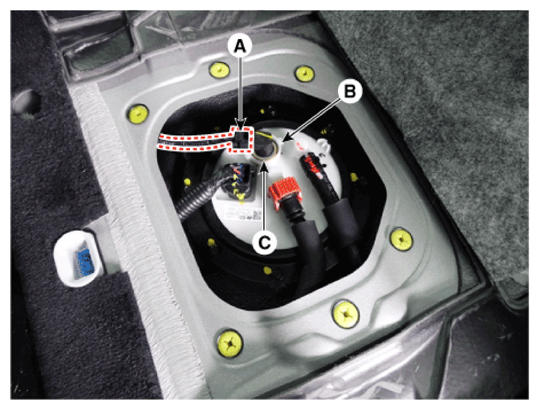

- Disconnect the fuel pressure sensor connector (A).
- Remove the fuel pressure sensor fixing pin (B).
- Remove the fuel pressure sensor (C) from the fuel pump.
