Front Alignment: Camber

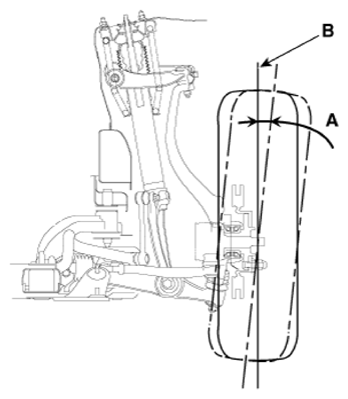

Camber refers to the tilt of the center of the wheel.
Camber angle
Sedan: -0.67°±0.5°
Limousine: -0.46°±0.5°
| Item |
Description |
| A |
Positive camber angle |
| B |
True vertical |
 Courtesy of HYUNDAI MOTOR AMERICA
|
