Repair Procedures: Inspection

  1. Check signal waveform of input speed sensor using the GDS.

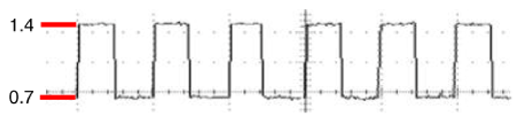

Specification:  Refer to "Signal Wave Form"as shown below.

G14233402Courtesy of HYUNDAI MOTOR AMERICA
