Repair Procedures: Installation

  1. To install, reverse the removal procedure.
  2. Input oil-pressure characteristics received backup in new TCM.

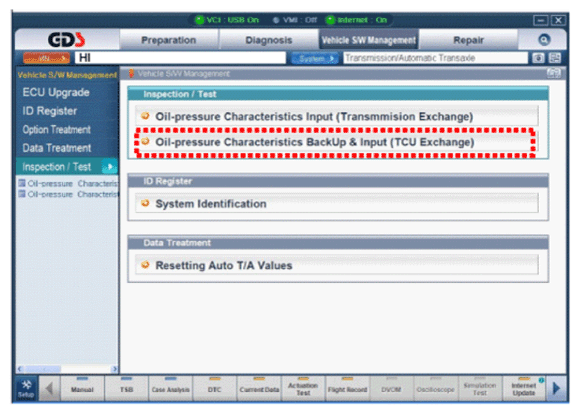

    G14233375Courtesy of HYUNDAI MOTOR AMERICA

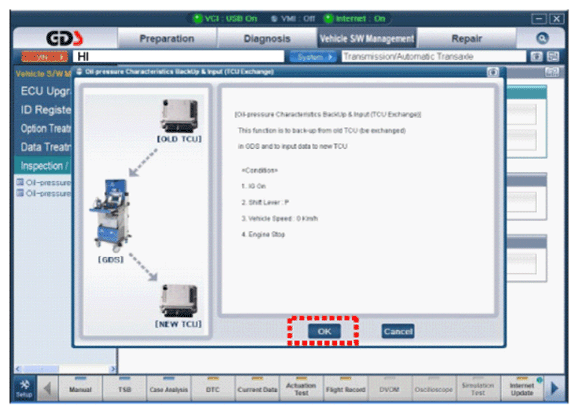

    G14233376Courtesy of HYUNDAI MOTOR AMERICA

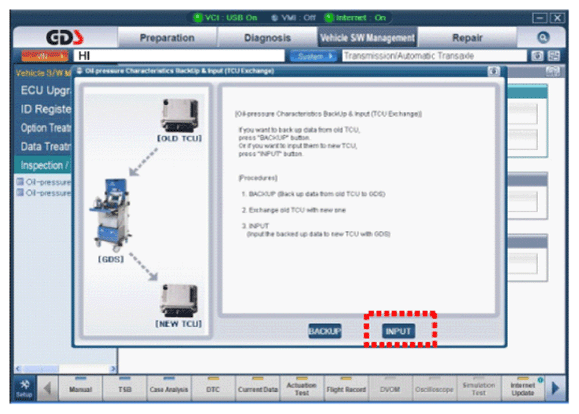

    G14233377Courtesy of HYUNDAI MOTOR AMERICA

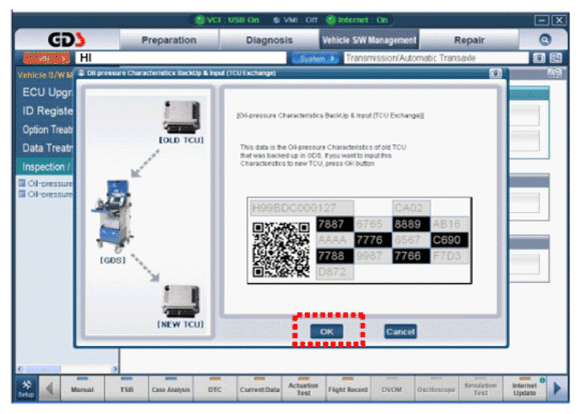

    G14233378Courtesy of HYUNDAI MOTOR AMERICA

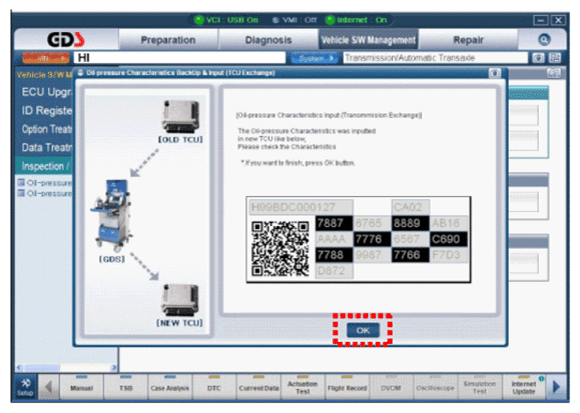

    G14233379Courtesy of HYUNDAI MOTOR AMERICA
  3. Perform the TCM adaptive values learning procedure.

    (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
