Schematic Diagrams
>>

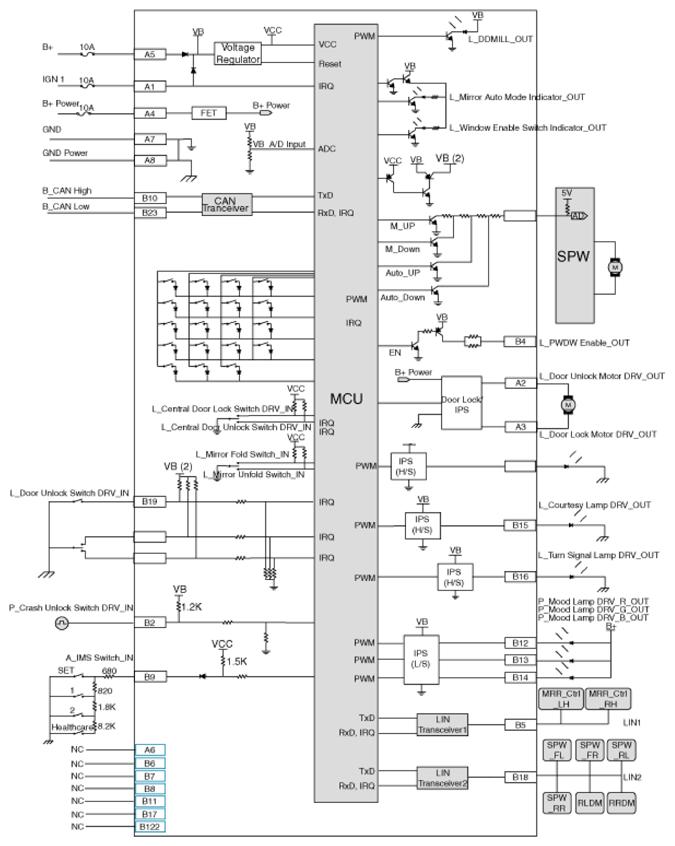

Circuit Diagram
>>
Driver Door Module (DDM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver Door Module (DDM)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
