Repair Procedures: Installation
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

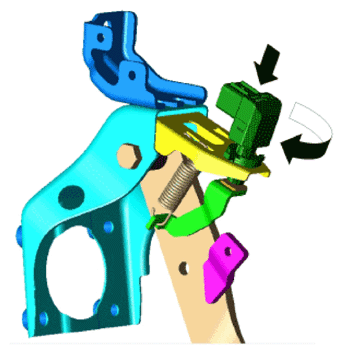

- After inserting, turn the stop switch (A) 45° clockwise.

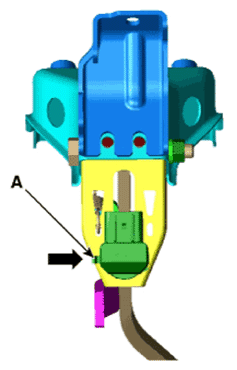

- Assemble the locking plate (A) by pushing it as indicated by the arrow.
- Confirm the gap (A) between stop lamp switch and bracket.
Stop lamp clearance: 0.7 - 1.7 mm (0.03 - 0.07 in.)
- If the gap between stop lamp switch and bracket is less than 0.7 - 1.7 mm (0.03 - 0.07 in.), check the mounting clip and other parts around the stop lamp. If normal, remove the stop lamp switch and then install again.

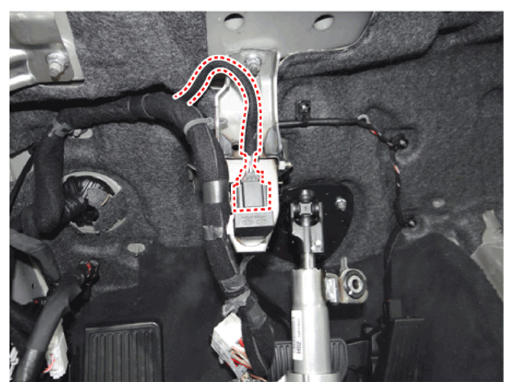

- Connect the stop lamp switch connector.
- Install the knee airbag.
(Refer to Restraint - "AIR BAG MODULE ")
- Install the lower crash pad.
(Refer to Body - "CRASH PAD ")
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
