Occupant Classification System (OCS) Unit

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front passenger seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

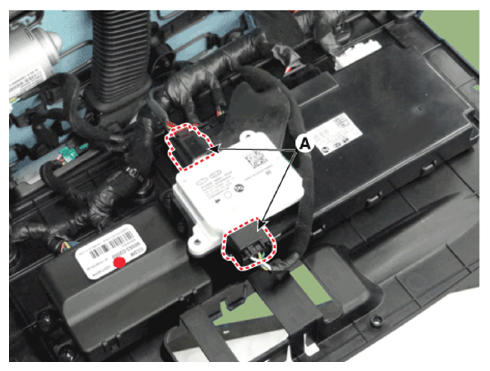

  3. Disconnect the occupant classification system unit connector (A).
    G14233716Courtesy of HYUNDAI MOTOR AMERICA

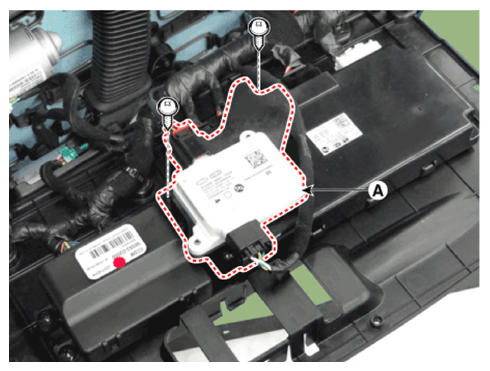

  4. Remove the occupant classification system unit bracket (A) after loosening the mounting screws.
    G14233717Courtesy of HYUNDAI MOTOR AMERICA

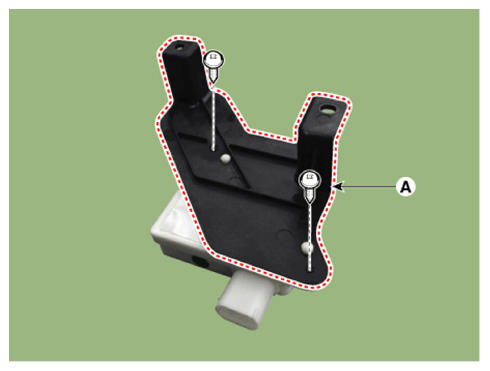

  5. Remove the occupant classification system unit (A) from the bracket after loosening the mounting screws
G14233718Courtesy of HYUNDAI MOTOR AMERICA
