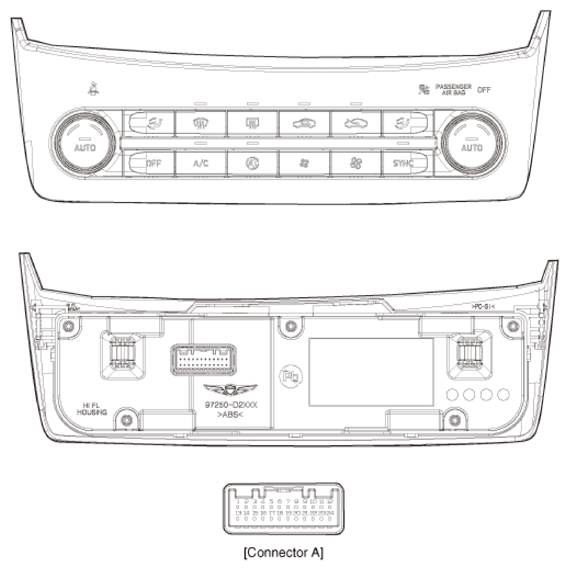

Components And Components Location: Components
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
| Pin NO | Function |
|---|---|
| 1 | Battery (+) |
| 2 | IGN2 |
| 3 | PAB IGN 1 |
| 4 | - |
| 5 | Rear defog switch |
| 6 | HTD (Rear defog indicator) |
| 7 | Detent Out (-) |
| 8 | ILL- (RHEO) |
| 9 | Incar motor (-) |
| 10 | Incar sensor (+) |
| 11 | Sensor ground |
| 12 | Ground |
| 13 | IGN1 |
| 14 | ISG B+ |
| 15 | Taillight (+) |
| 16 | - |
| 17 | Climate CAN (Low) |
| 18 | Climate CAN (High) |
| 19 | - |
| 20 | - |
| 21 | - |
| 22 | PAB off signal |
| 23 | SBR |
| 24 | Ground |
