Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
- Remove the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ JOINT ")

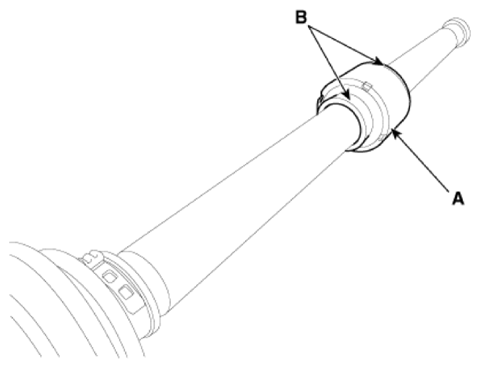

- Remove the both side of clamp (B) of the dynamic damper (A).

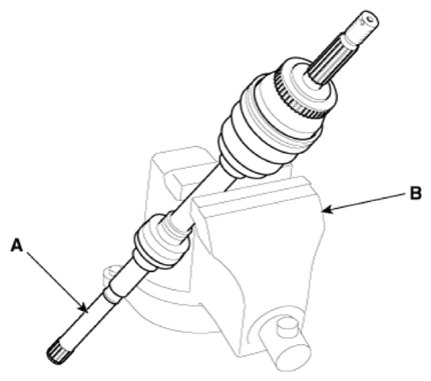

- Fix the driveshaft (A) with a vice (B) as illustrated.
- Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper when the dynamic damper is removed.

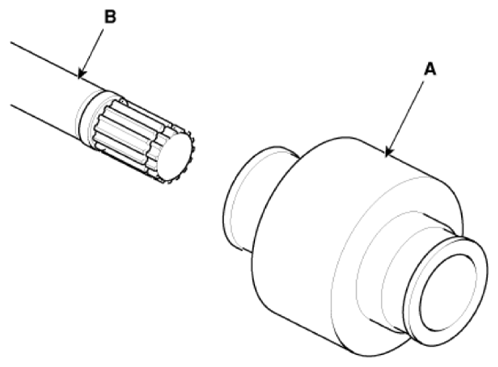

- Separate the dynamic damper (A) from the shaft (B) carefully.
