Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Loosen the wheel nuts slightly.

    Raise the vehicle, and make sure it is securely supported.

  3. Remove the front wheel and tire (A) from front hub.

    Tightening torque:

    137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

    NOTE:

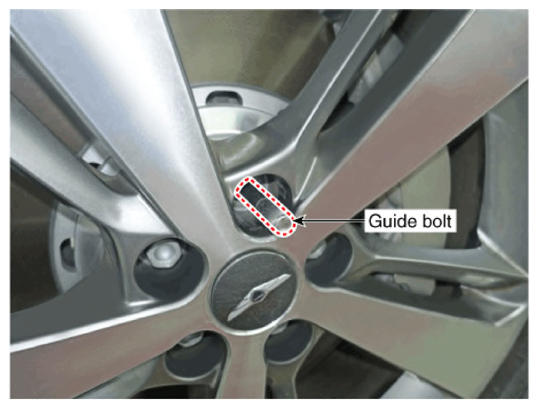

    • Safely remove the wheel and tire (A) using the guide bolt included in the Tire Mobility Kit (TMK).
      G14721937Courtesy of HYUNDAI MOTOR AMERICA

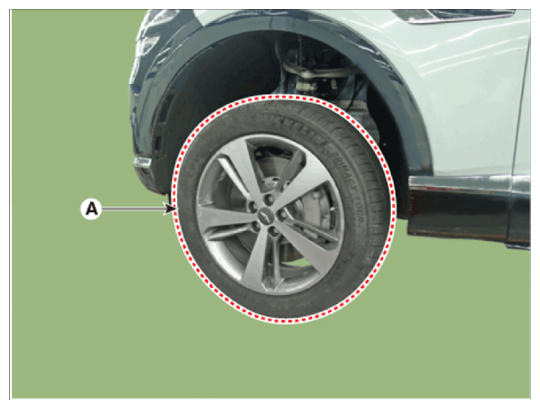

    • Be careful not to damage the hub bolts when removing the front wheel and tire (A).
    G14721938Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the snap pin and then loosen the castle nut (A).

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

    G14721939Courtesy of HYUNDAI MOTOR AMERICA

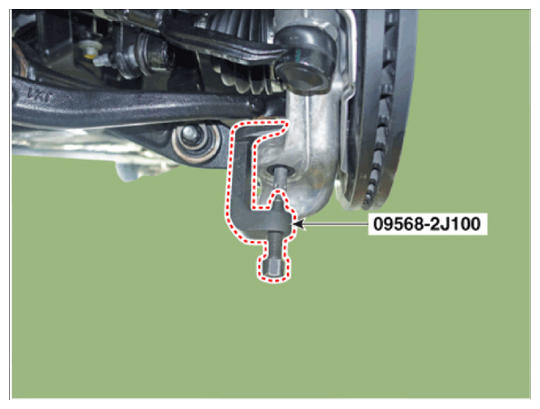

  5. Remove the tension arm ball joint by using the SST (09568-2J100).
    G14721940Courtesy of HYUNDAI MOTOR AMERICA

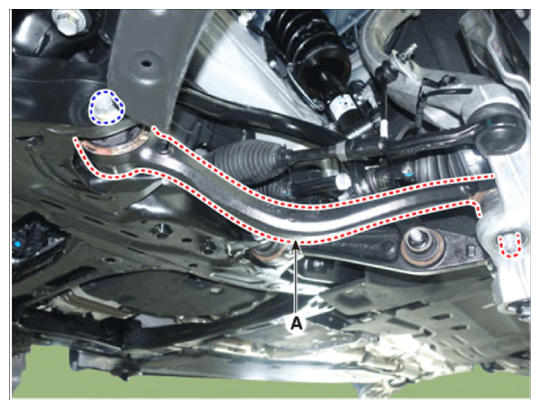

  6. Remove the tension arm (A) after loosening the bolt and nut.

    Tightening torque:

    156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)

    G14721941Courtesy of HYUNDAI MOTOR AMERICA

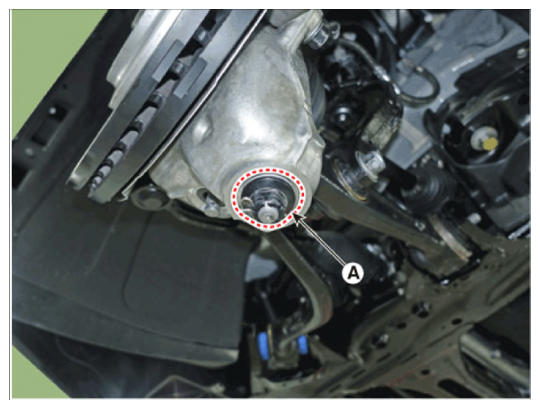

  7. Remove the snap pin and then loosen the castle nut (A).

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

    G14721942Courtesy of HYUNDAI MOTOR AMERICA

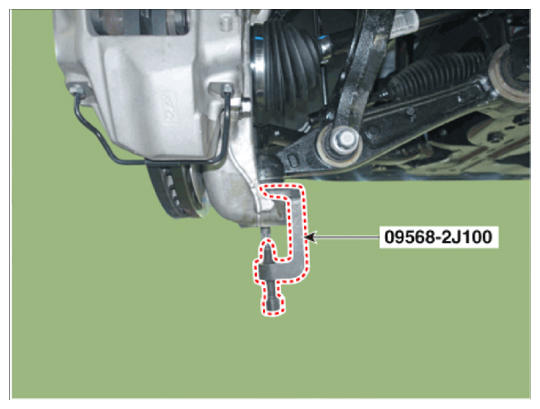

  8. Remove the lateral arm ball joint by using the SST (09568-2J100).
    G14721943Courtesy of HYUNDAI MOTOR AMERICA

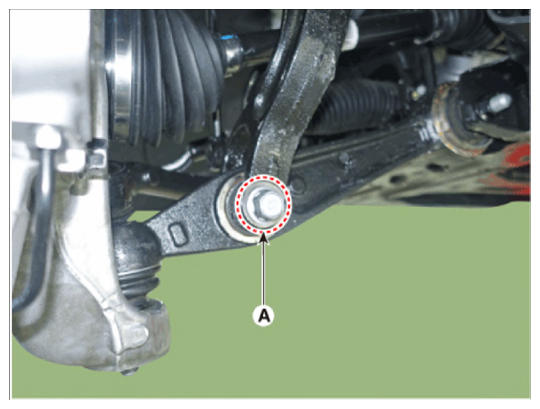

  9. Loosen the fork bracket mounting bolt (A).

    Tightening torque:

    156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)

    G14721944Courtesy of HYUNDAI MOTOR AMERICA

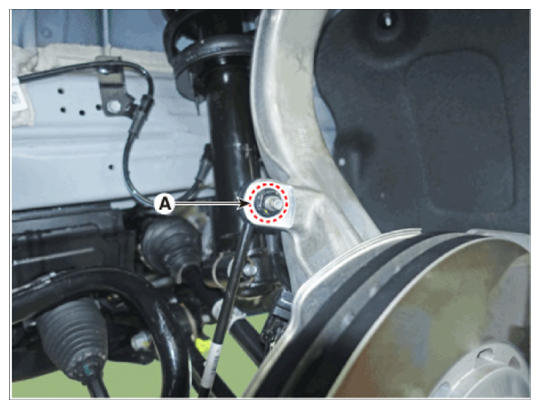

  10. Loosen the nut (A) and then remove the stabilizer link from the front knuckle.

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

    NOTE:
    • When loosening the nut, fix the outer hexagon of stabilizer bar link.
    • Be careful not to damage the stabilizer link boots.
    G14721945Courtesy of HYUNDAI MOTOR AMERICA

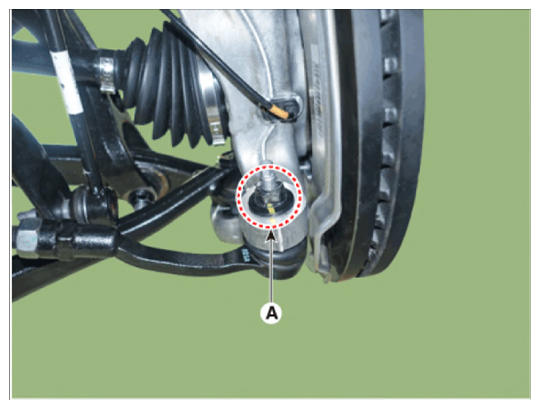

  11. Remove the split pin and then loosen the nut (A).

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

    G14721946Courtesy of HYUNDAI MOTOR AMERICA

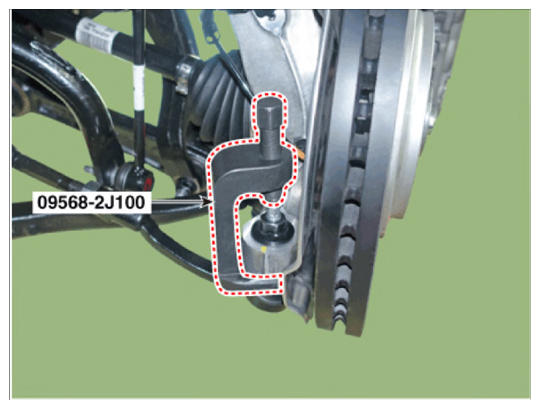

  12. Remove the tie rod end ball joint (A) by using the SST (09568-2J100).
    G14721947Courtesy of HYUNDAI MOTOR AMERICA

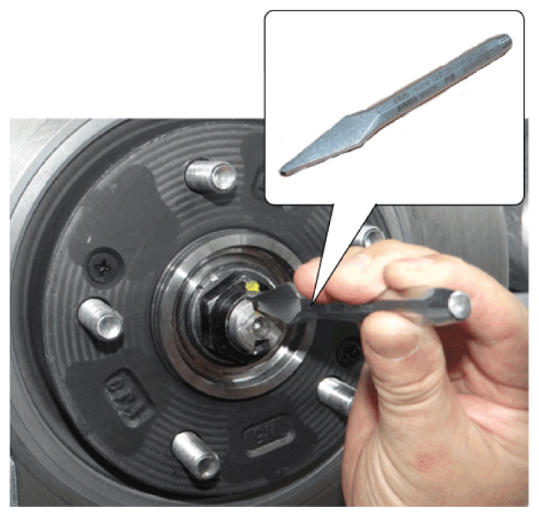

  13. By hammering on a chisel, unlock the driveshaft lock hub nut caulking.
    G14721948Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • If there is screw thread (A) on the end of the nut, unlock the caulking by using a chisel and then loosen the nut to prevent damaging driveshaft screw thread.
      G14721949Courtesy of HYUNDAI MOTOR AMERICA

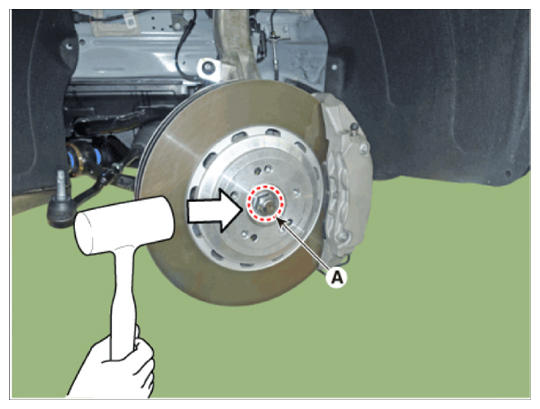

  14. Loosen the caulking nut (A) from the driveshaft and then separate the driveshaft from the hub assembly by using the plastic hammer.

    Tightening torque:

    294.2 - 313.8 N.m (30.0 - 32.0 kgf.m, 217.0 - 231.5 lb-ft)

    NOTE:
    • When removing the drive shaft, use a plastic hammer in order to avoid shock applied to the axle.
    • When removing the drive shaft, do not forcibly pull or excessively bend the axle to separate.
    G14721950Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

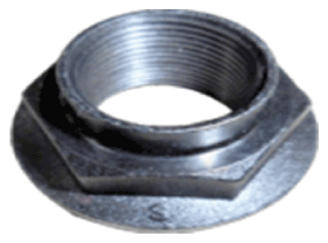

    • The driveshaft lock nut must be replaced with new one.
      G14721951Courtesy of HYUNDAI MOTOR AMERICA
    • When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.
      G14721952Courtesy of HYUNDAI MOTOR AMERICA

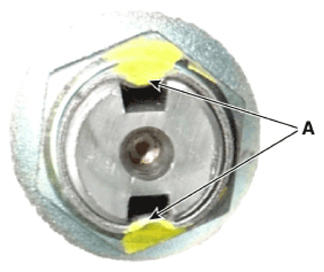

    • Tighten the driveshaft lock hub nut to the specified tightening torque, and caulk by using a chisel and hammer.
    • If there are two key seats, perform on all two seats.

    Caulking depth (A)  : 1.5 mm (0.0591 in)
    G14721953Courtesy of HYUNDAI MOTOR AMERICA

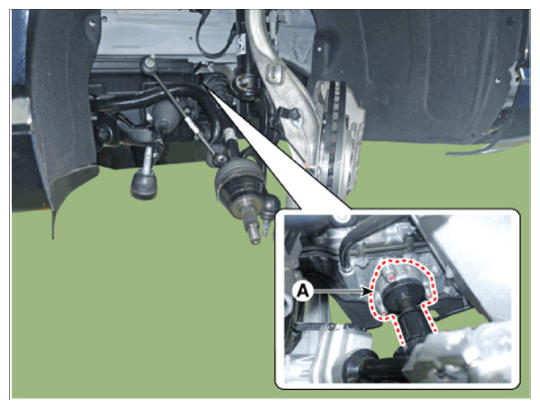

  15. Loosen the mounting bolt and then remove the inner shaft bearing bracket and front drive shaft (A) from the engine oil pan.

    Tightening torque:

    49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

    G14721954Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • When removing the driveshaft, be careful not to damage the boot of the shock absorber.

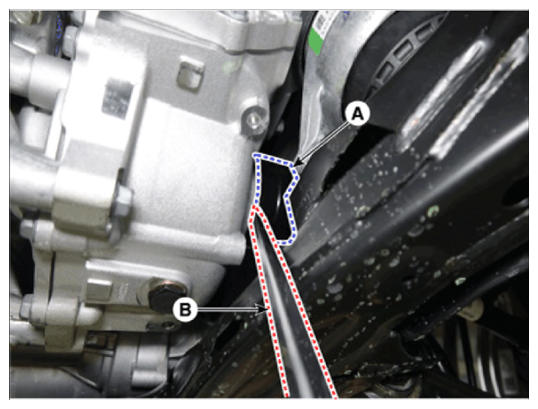

  16. Insert a pry bar (B) remove the passenger side driveshaft (A) from the front carrier.
    G14721955Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Use a pry bar (A) being careful not to damage the transaxle and joint.
    • Do not insert the pry bar (A) too deep, as this may cause damage to the oil seal.
    • Do not pull the driveshaft by excessive force it may cause components inside the joint kit to dislodge resulting in a torn boot or a damaged bearing.
    • Plug the hole of the transaxle case with the oil seal cap to prevent contamination.
    • Support the driveshaft properly.
    • Replace the clip whenever the driveshaft is removed from the differential carrier.
