Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

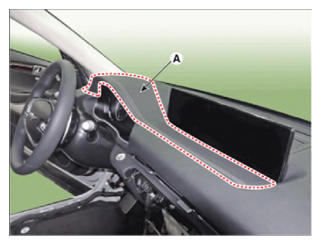

  2. Remove the cluster fascia upper garnish (A).
    G14723733Courtesy of HYUNDAI MOTOR AMERICA

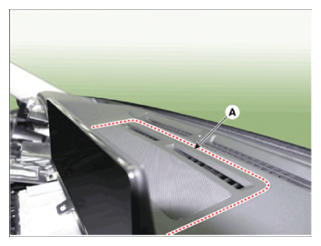

  3. Remove the crash pad upper garnish (A).
    G14723734Courtesy of HYUNDAI MOTOR AMERICA

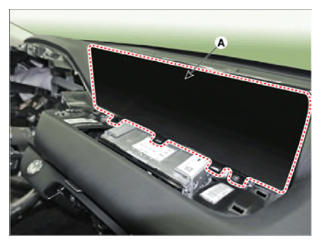

  4. Remove the front monitor (A) after loosening mounting screws.
    G14723735Courtesy of HYUNDAI MOTOR AMERICA

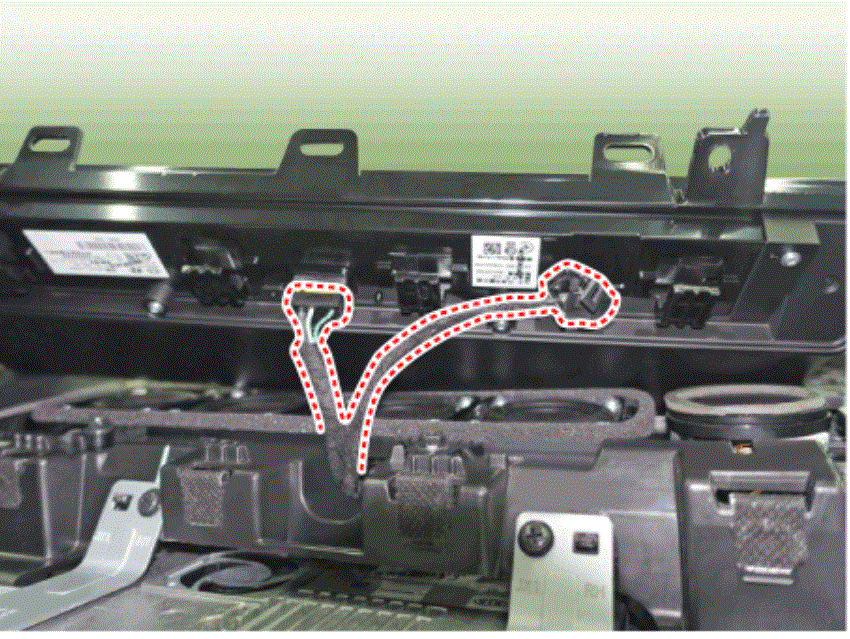

  5. Disconnect the monitor connector and then remove the front monitor.
    G14723736Courtesy of HYUNDAI MOTOR AMERICA

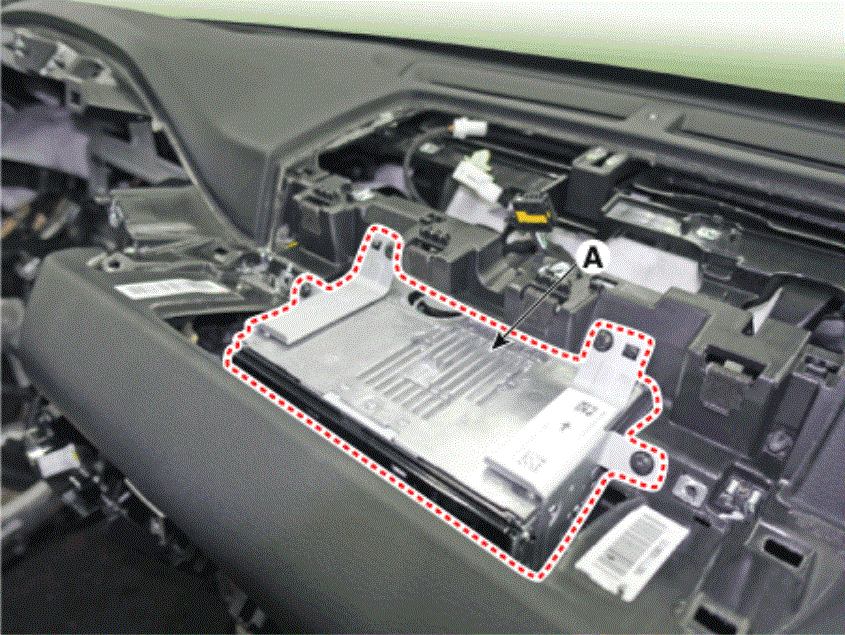

  6. Remove the AVN head unit (A) after loosening mounting screws.
    G14723737Courtesy of HYUNDAI MOTOR AMERICA

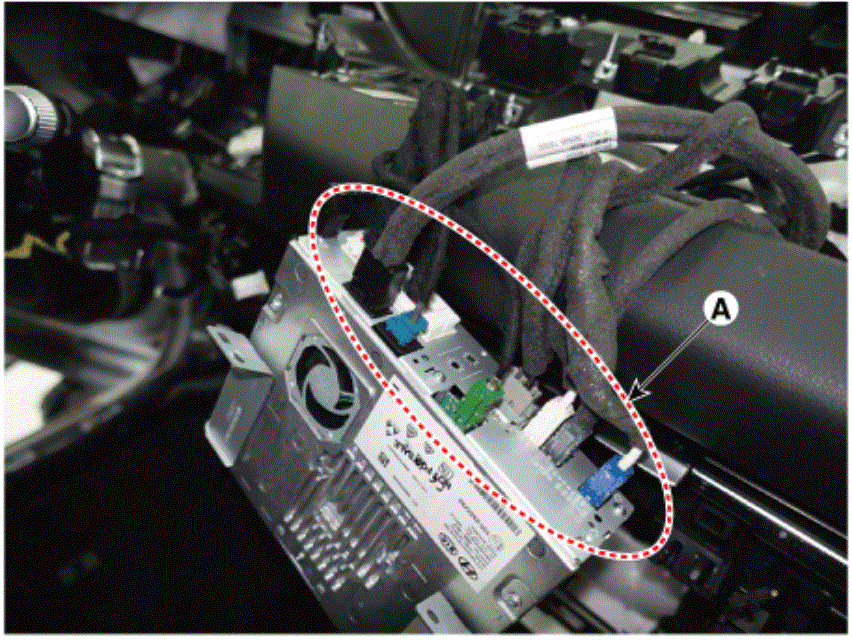

  7. Disconnect the AVN head unit connector (A).
    G14723738Courtesy of HYUNDAI MOTOR AMERICA
