Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the Second/Third row seat assembly.
(Refer to Body - "REAR SEAT ASSEMBLY ")
- Remove the rear floor carpet.
(Refer to Body - "FLOOR CARPET ")

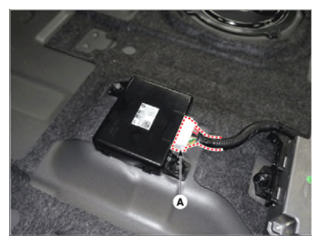

- Disconnect the rear curtain unit connector (A).

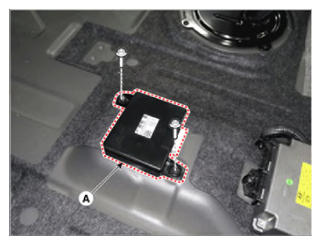

- Loosen the mounting nuts and remove the rear curtain unit (A).
