Trunk Lid Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk trim.

    (Refer to Body - "TRUNK LID TRIM ")

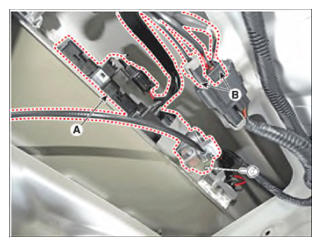

  3. Disconnect the connector (B) and then Remove the trunk lid switch (A) by separating the fixed hook.
    G15589765Courtesy of HYUNDAI MOTOR AMERICA

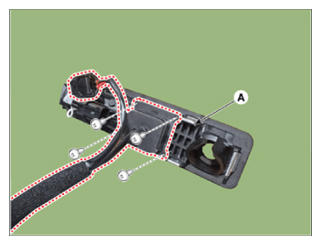

  4. Disconnect the connector and then remove the switch (A).
    G15589766Courtesy of HYUNDAI MOTOR AMERICA
