Repair procedures: Inspection

  1. Check signal waveform of input speed sensor using the GDS.

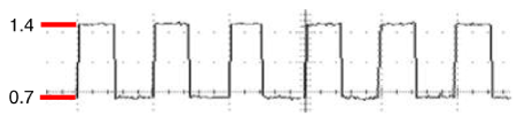

    Specification:  Refer to "Signal Wave Form" as shown below.

G14237338Courtesy of HYUNDAI MOTOR AMERICA
