Dynamic Damper: Installation

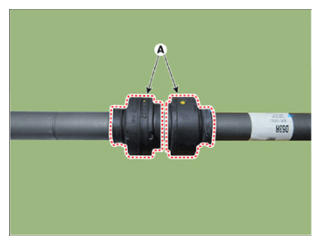

  1. Install the dynamic damper (A).
    G14764462Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing the dynamic damper, install it in set with the mounting part (A) of the shaft.

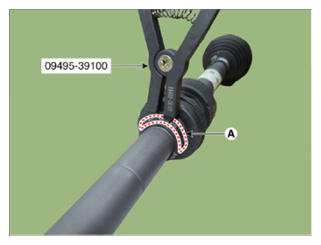

  2. Install the dynamic damper band (A) using SST (09495-39100).
    G14764463Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the transaxle side joint. (Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")
  4. Install the front driveshaft. (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
