Removal And Installation

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "REMOVAL AND INSTALLATION ")

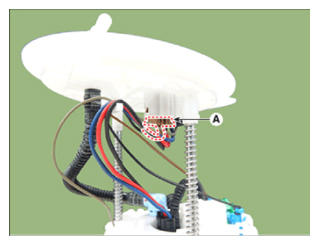

  2. Disconnect the fuel sender connector (A).
    G14763951Courtesy of HYUNDAI MOTOR AMERICA

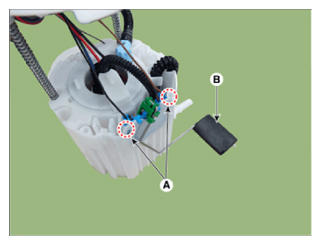

  3. Remove the fuel sender (B) after releasing the fixing hooks (A).
    G14763952Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
