Current Data Inspection
- Ignition "OFF".
- Connect GDS to Data Link Connector (DLC).
- Ignition "ON" & Engine "ON".
- Monitor following parameters in "Current Data" with GDS.
Specification:

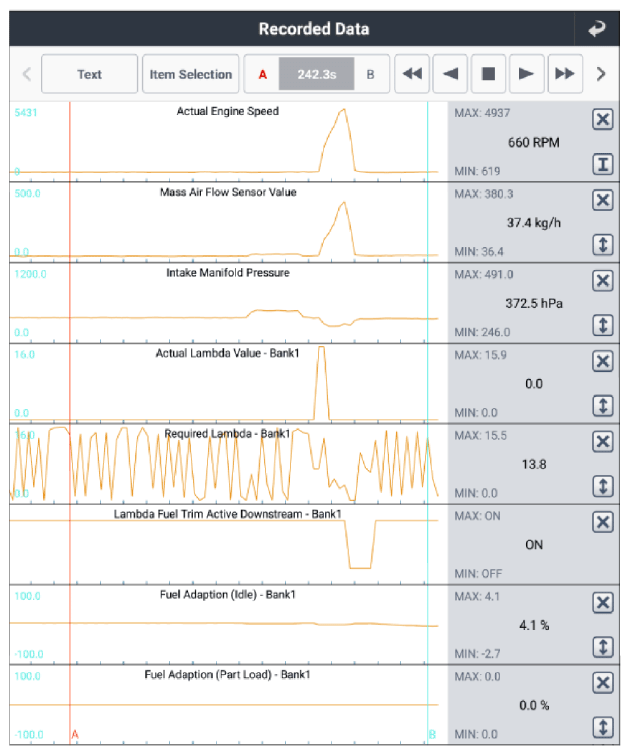

Refer to figure below
 Courtesy of HYUNDAI MOTOR AMERICA
|
