Power Trunk Inner Switch: Removal
- Disconnect the negative (-) battery terminal.

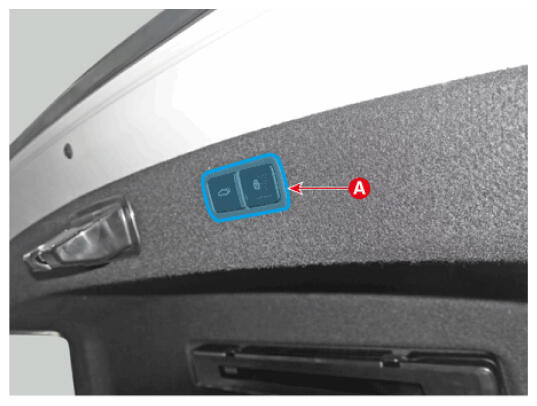

- Remove the trunk inner switch (A) from the trunk lid trim.
 Courtesy of HYUNDAI MOTOR AMERICA
|

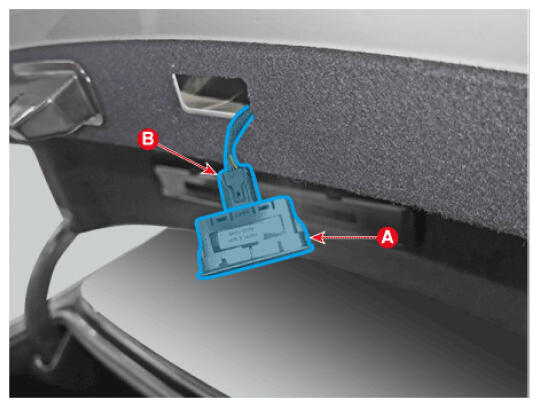

- Disconnect the connector (B) and remove the trunk inner switch (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
