Components And Components Location: Components
 Courtesy of HYUNDAI MOTOR AMERICA
|

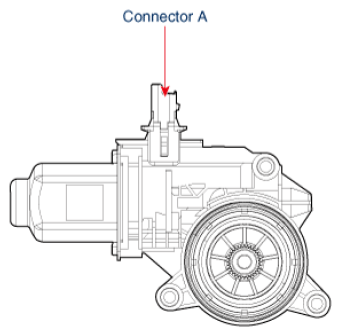

| Connector A |
 Courtesy of HYUNDAI MOTOR AMERICA
|

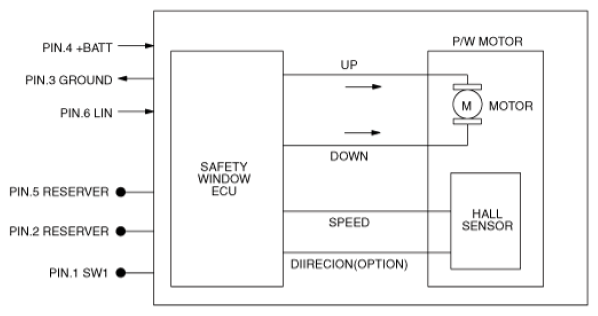

| Pin |
Description |
| 1 |
Switch 1 |
| 2 |
- |
| 3 |
Ground |
| 4 |
Battery (+) |
| 5 |
- |
| 6 |
LIN |
 Courtesy of HYUNDAI MOTOR AMERICA
|
