Inverter Assembly: Installation

  1. To install, reverse the removal procedures.
NOTE:
  • Be careful not to bend the inverter assembly gasket is a metal gasket.
  • Use a gasket with a new one.

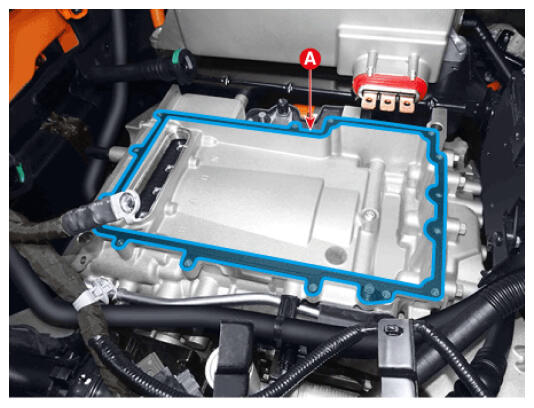

    [Front Inverter Assembly]

    G16878434Courtesy of HYUNDAI MOTOR AMERICA

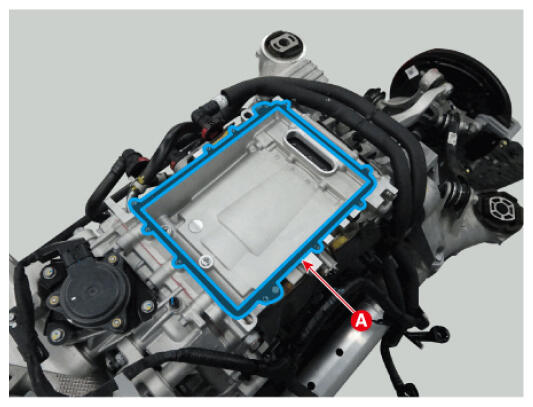

    [Rear Inverter Assembly]

    G16878435Courtesy of HYUNDAI MOTOR AMERICA
