Disassembly And Reassembly

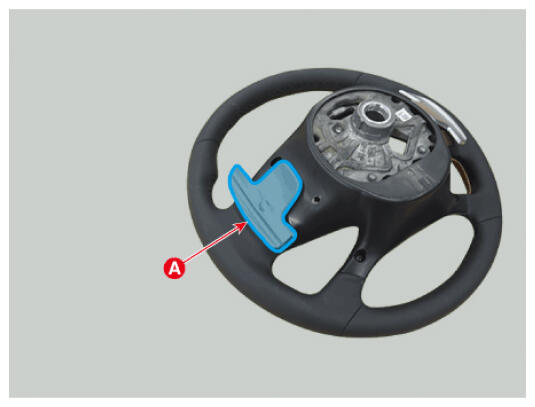

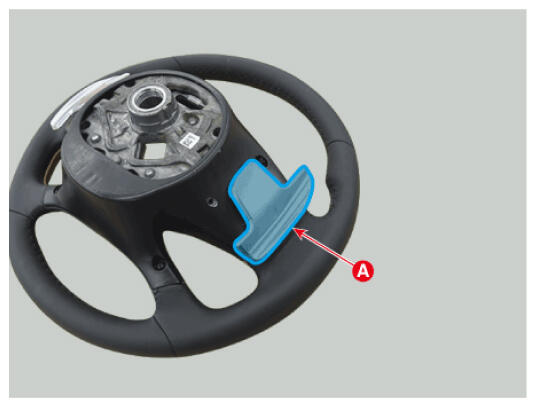

  1. Remove the paddle shift switch (A) after loosening the screw.
    G16871299Courtesy of HYUNDAI MOTOR AMERICA
    G16871300Courtesy of HYUNDAI MOTOR AMERICA

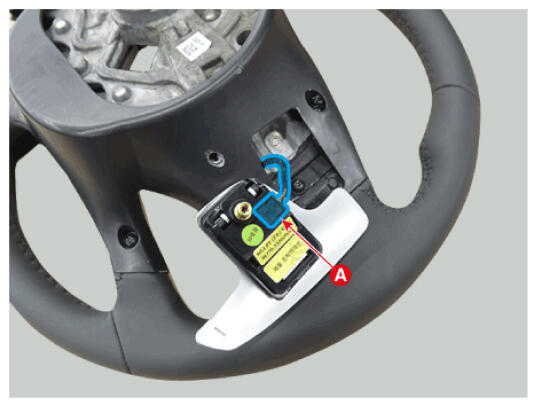

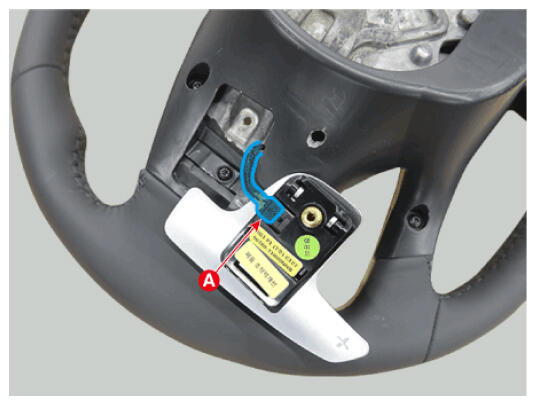

  2. Disconnect the paddle shift switch connectors (A).
    G16871301Courtesy of HYUNDAI MOTOR AMERICA
    G16871302Courtesy of HYUNDAI MOTOR AMERICA

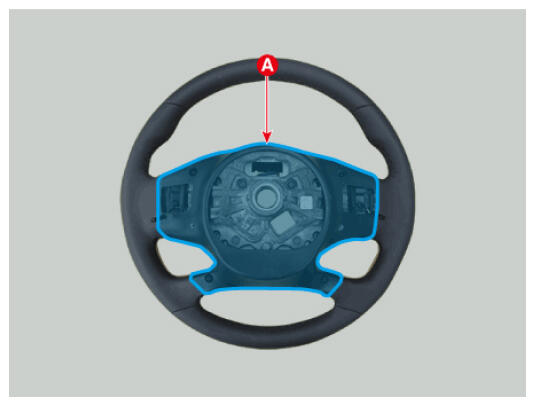

  3. Remove the lower cover (A) after loosening the screw.
    G16871303Courtesy of HYUNDAI MOTOR AMERICA

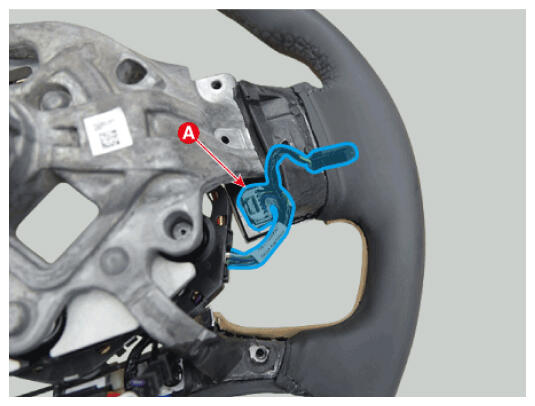

  4. Disconnect the remote control switch connector (A).
    G16871304Courtesy of HYUNDAI MOTOR AMERICA

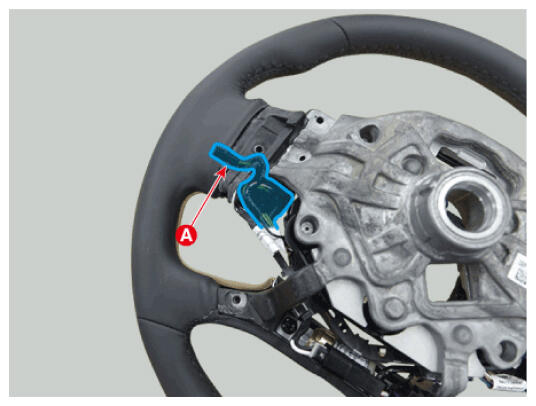

    G16871305Courtesy of HYUNDAI MOTOR AMERICA

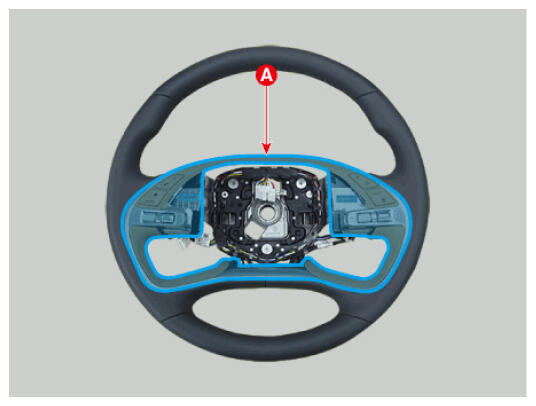

  5. Remove the remote control switch bezel (A) after loosening the screw.
    G16871306Courtesy of HYUNDAI MOTOR AMERICA

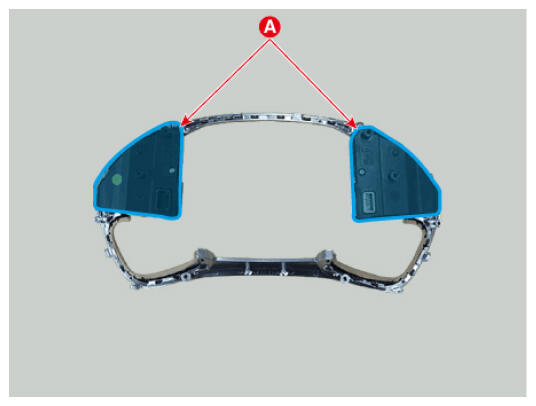

  6. Remove the remote control switch (A) after loosening the screw.
    G16871307Courtesy of HYUNDAI MOTOR AMERICA

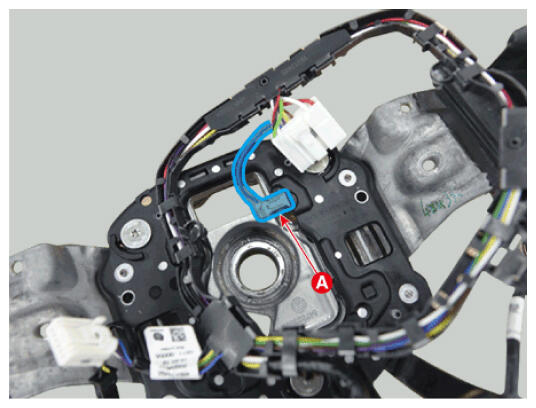

  7. Disconnect the ground connector (A).
    G16871308Courtesy of HYUNDAI MOTOR AMERICA

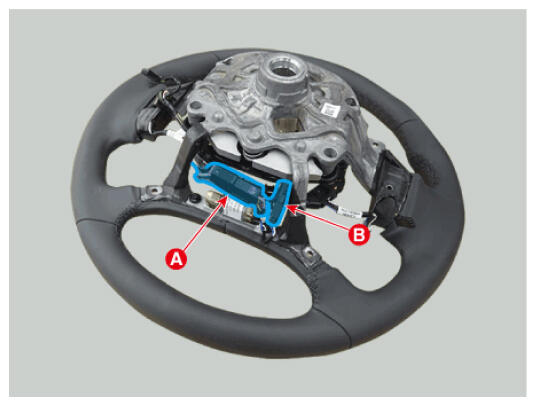

  8. Remove the wiring after disconnecting the heated steering wheel connector (A) and haptic motor connector (B).
    G16871309Courtesy of HYUNDAI MOTOR AMERICA

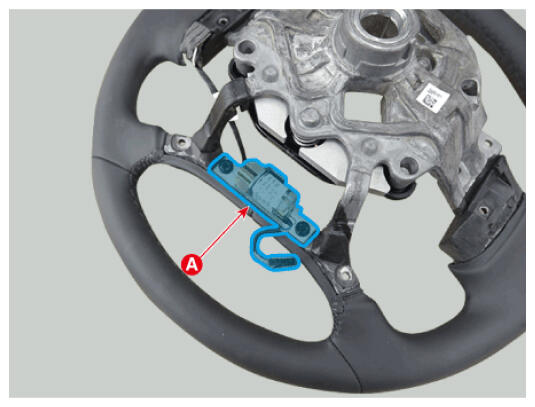

  9. Remove the haptic motor (A) after loosening the screw.
    G16871310Courtesy of HYUNDAI MOTOR AMERICA

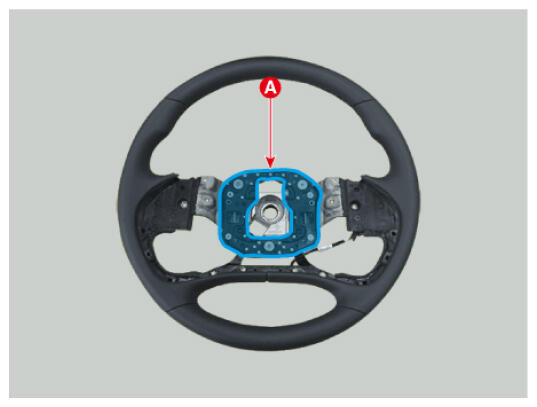

  10. Remove the horn plate (A) after loosening the mounting bolts.
    G16871311Courtesy of HYUNDAI MOTOR AMERICA
  11. To reassembly, reverse the disassembly procedures.
