SPC (Service Point Calibration)
Perform the automatic tolerance correction of the front camera using the diagnostic tools.

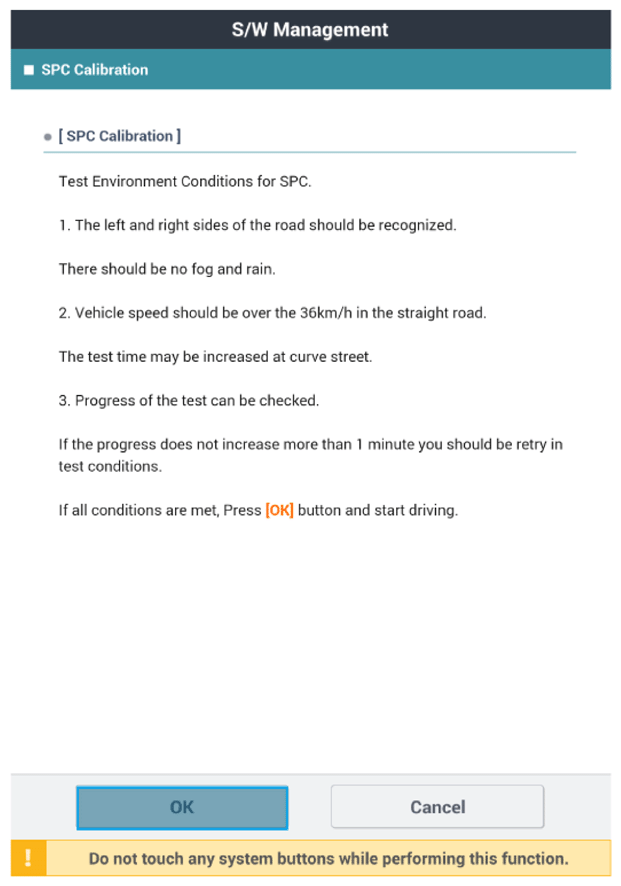

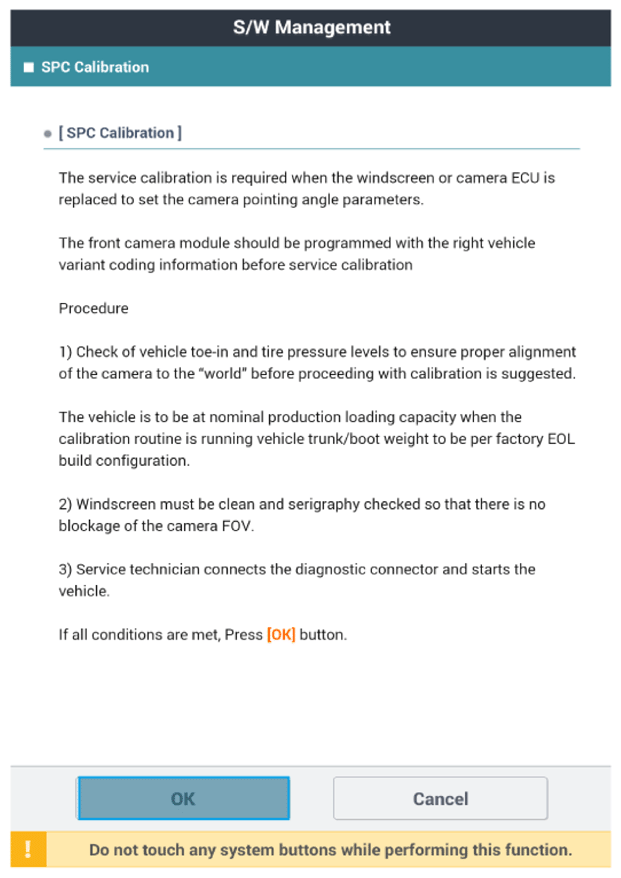

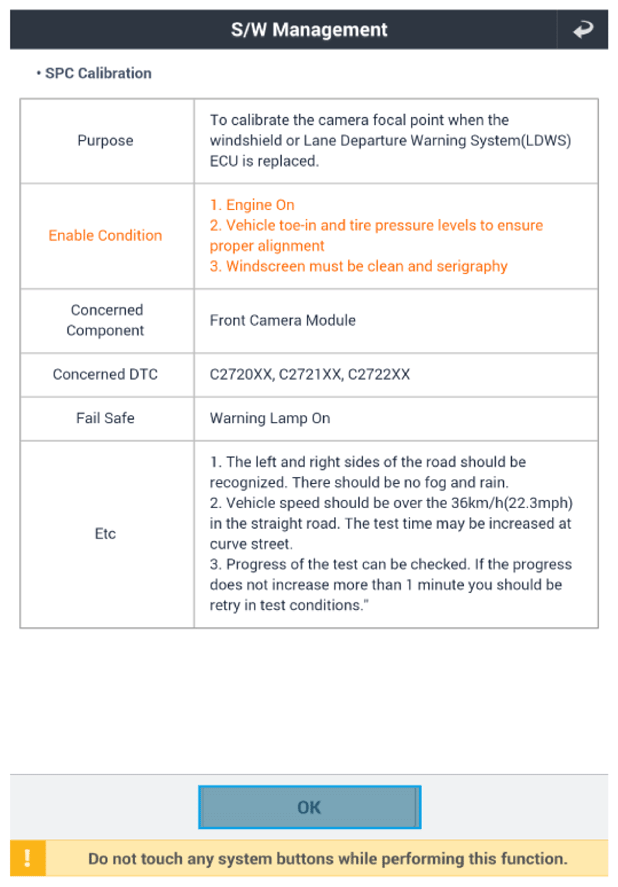

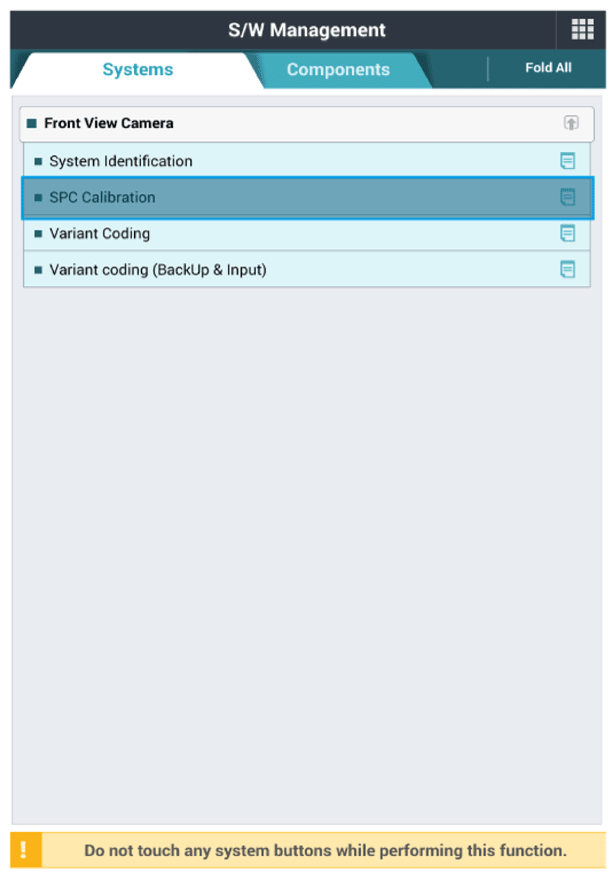

- Use the diagnostic device to perform SPC calibration.
NOTE:
* While adjusting the SPC, check the SPC Progress bar on the diagnostic device.
: Check for the camera installation condition.
- If the SPC Progress does not increase from 0:
- There are no CAN signal input. The camera is installed with wrong angle. SPC activation condition (Driving speed, road environment, and road curvature) not qualified.
: Check for the connections, camera installation, and SPC adjustment condition. Then drive on a proper road.
- SPC Progress does increase from 0 but the number hovers around at certain point:
- The camera is not properly installed.
: Check for the camera installation condition.
NOTE:
- Driving and stopping the vehicle does not stop the SPC Calibration.
- SPC restart is not required after the camera adjustment is complete.

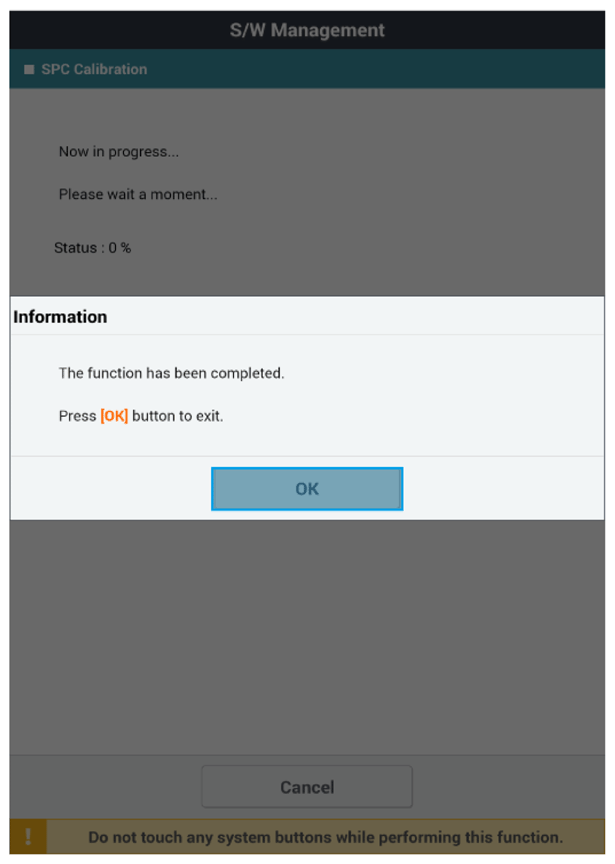

- After SPC calibration is complete, the result (success or fail) is displayed.
- DTC C2721 is relieved and the warning light does not illuminate.
- DTC does not need to be removed separately.
