Removal And Installation

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing using a remover, be careful not to damage the parts.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the battery negative (-) terminal.
  2. Drain the motor coolant.

    (Refer to Cooling System - "COOLANT ")

  3. Recover the refrigerant with a recovery/recycling/charging station.

    (Refer to Heating, Ventilation And Air Conditioning - "REFRIGERANT RECOVERY/RECYCLING/CHARGING/VACUUM ")

  4. Remove the front bumper beam assembly.

    (Refer to Front End Module - "FRONT BUMPER BEAM ASSEMBLY ")

  5. Remove the head lamps.

    (Refer to Light & Vision System - "HEAD LAMPS ")

  6. Remove the combo charger inlet assembly.

    (Refer to Battery Control System - "COMBO CHARGER INLET ASSEMBLY ")

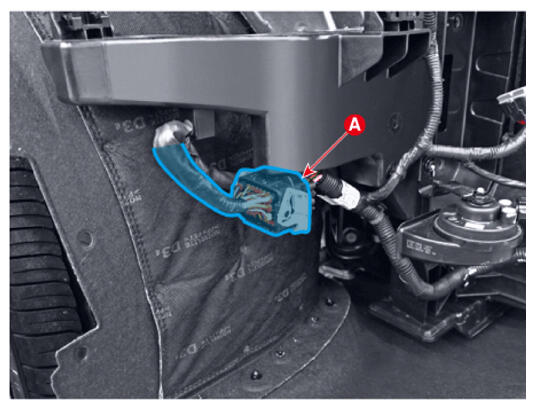

  7. Disconnect the front end module main connector (A).
    G16819432Courtesy of HYUNDAI MOTOR AMERICA

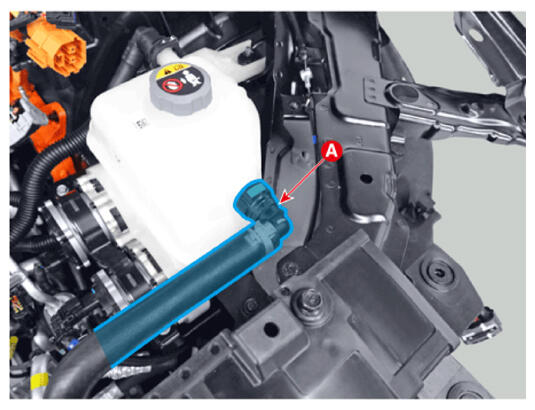

  8. Separate the reservoir tank cooling hose (A).
    G16819433Courtesy of HYUNDAI MOTOR AMERICA

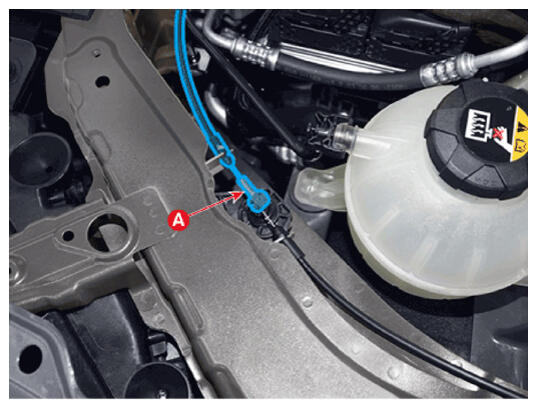

  9. Separate the hood latch release handle cable (A).
    G16819434Courtesy of HYUNDAI MOTOR AMERICA

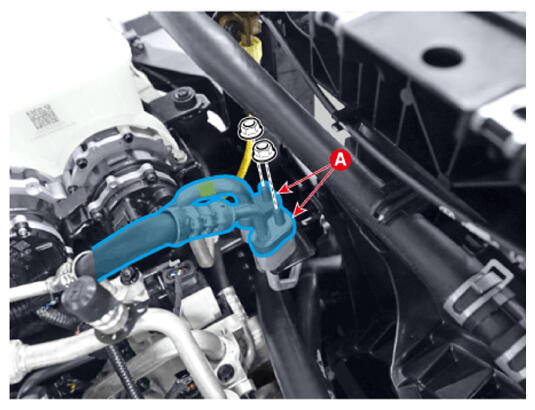

  10. Separate the suction & liquid line (A), after removing the nuts.

    Tightening torque:  8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G16819435Courtesy of HYUNDAI MOTOR AMERICA

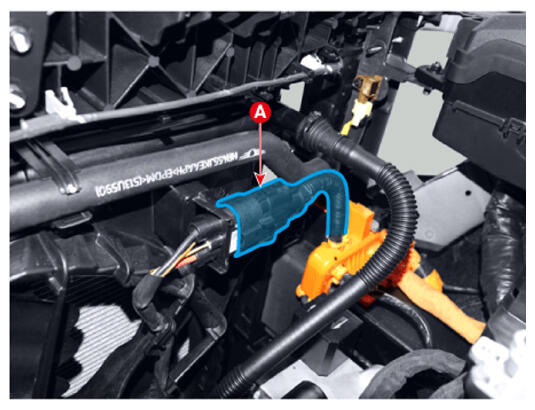

  11. Disconnect the cooling fan connector (A).
    G16819436Courtesy of HYUNDAI MOTOR AMERICA
  12. Separate the radiator outlet hose (A).
    G16819437Courtesy of HYUNDAI MOTOR AMERICA

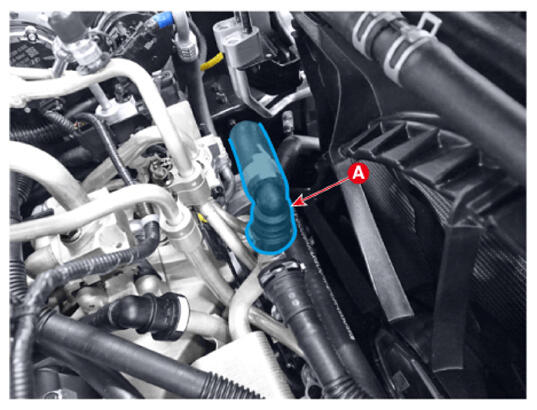

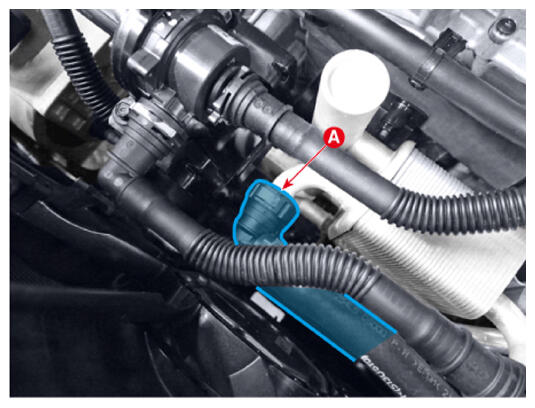

  13. Separate the water condenser cooling hose (A).
    G16819438Courtesy of HYUNDAI MOTOR AMERICA
    G16819439Courtesy of HYUNDAI MOTOR AMERICA

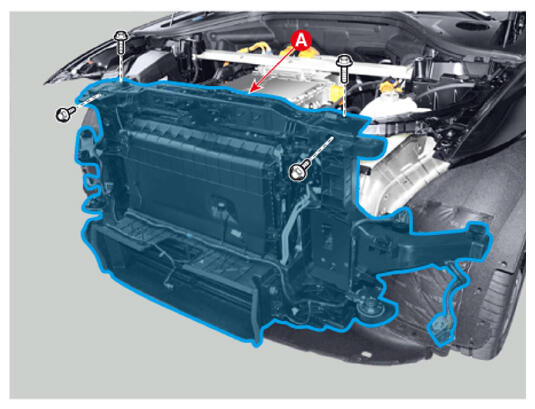

  14. Remove the carrier assembly (A) from the body.

    Tightening torque:  25.5 - 38.2 N.m (2.6 - 3.9 kgf.m, 18.8 - 28.2 lb-ft)

    G16819440Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove the stiffener assembly.

    (Refer to Front End Module - "STIFFENER ASSEMBLY ")

  16. Remove the horn.

    (Refer to Front End Module - "HORN ")

  17. Remove the smart key antenna.

    (Refer to Security & Vehicle Ignition System - "SMART KEY SYSTEM ")

  18. Remove the condenser.

    (Refer to Heating, Ventilation And Air Conditioning - "CONDENSER ")

  19. Remove the cooling fan assembly.

    (Refer to Cooling System - "COOLING FAN ")

  20. Remove the radiator.

    (Refer to Cooling System - "RADIATOR ")

  21. Remove the hood latch.

    (Refer to Hood - "HOOD LATCH ")

  22. Install in the reverse order of removal.
    NOTE:
    • Turn the power switch ON; the SRS indicator light should be turned on for about 6 seconds and then go off.

    Information

    • Make sure the connector is connected properly.
    • Replace any damaged clips or retainers.
