FPM Diagnostic Check

This feature is to check the diagnostic check.

Connect the diagnostic device to the connector (16 pins) under the crash pad of the driver seat. Start the motor (IGN ON) and turn on the diagnostic device.

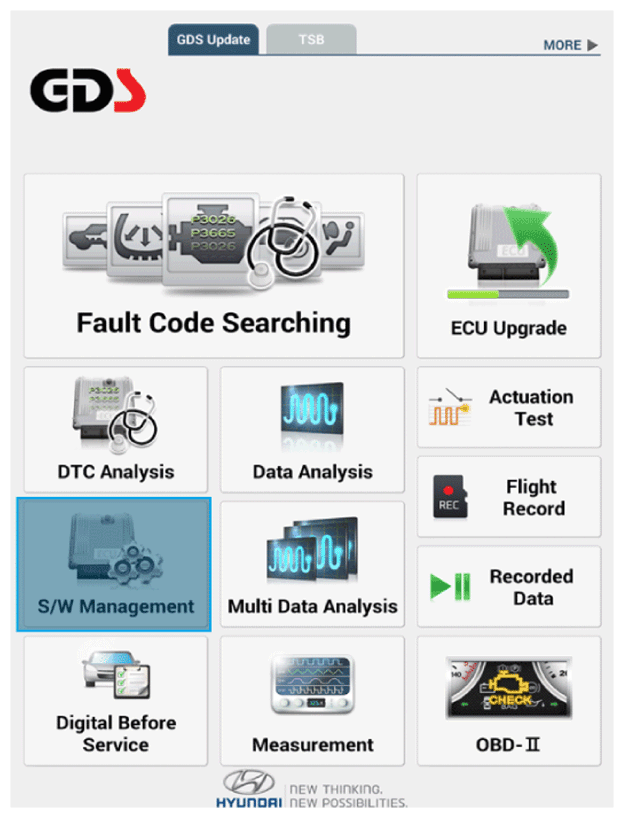

Select "S/W Management," then "Fingerprint Module."

Courtesy of HYUNDAI MOTOR AMERICA

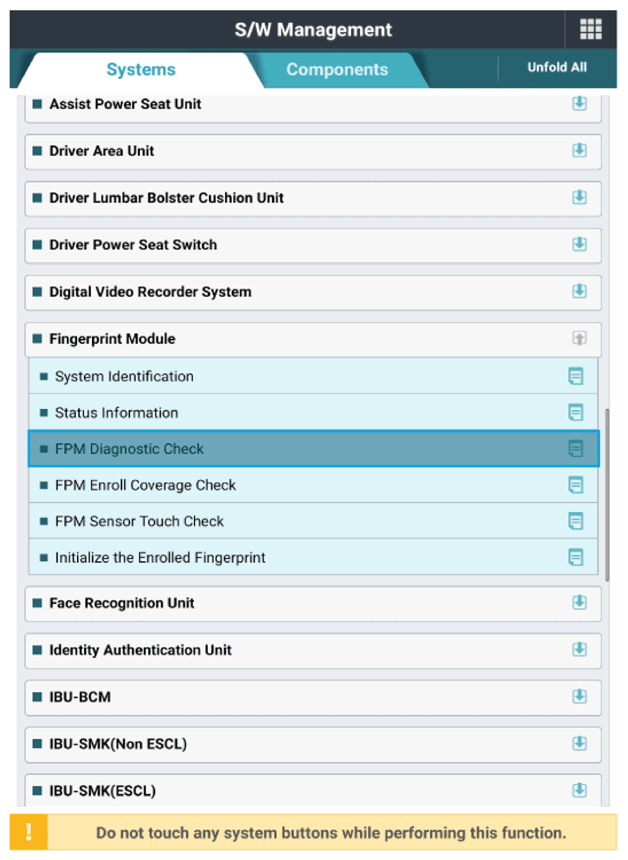

Select "FPM Diagnostic Check".

G16820177

Courtesy of HYUNDAI MOTOR AMERICA

G16820178

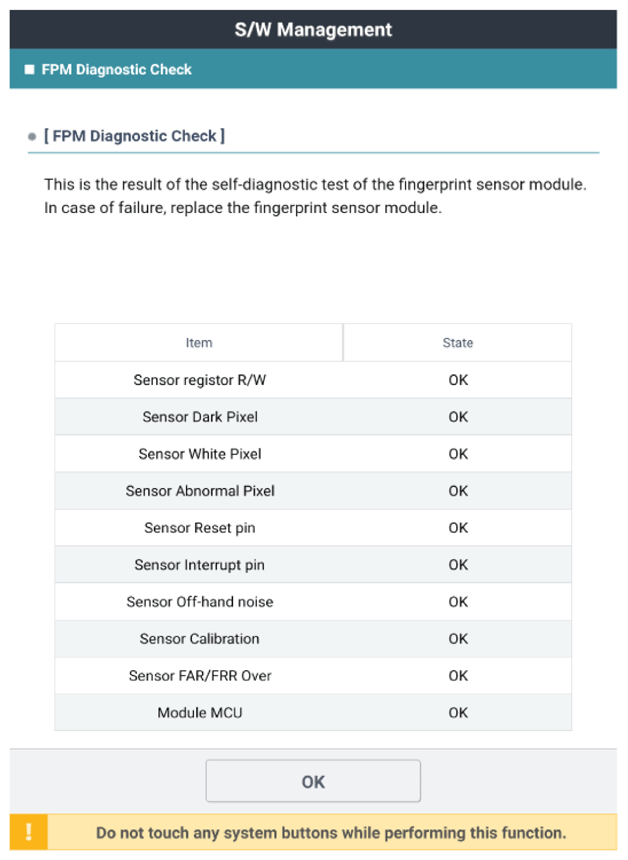

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

If even one item is "Status = Fail", the fingerprint module is exchanged.
