FPM Status Information

This feature is to check the learning condition of FPM, AVN, and IAU.

1. Connect the diagnostic device to the connector (16 pins) under the crash pad of the driver seat. Start the motor (IGN ON) and turn on the diagnostic device.

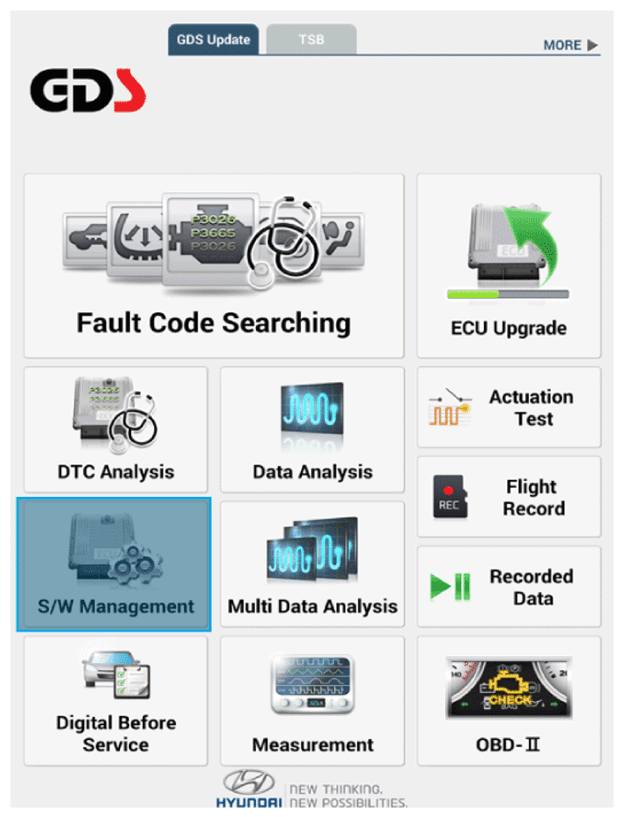

2. Select "S/W Management," then "Fingerprint Module."

   Courtesy of HYUNDAI MOTOR AMERICA

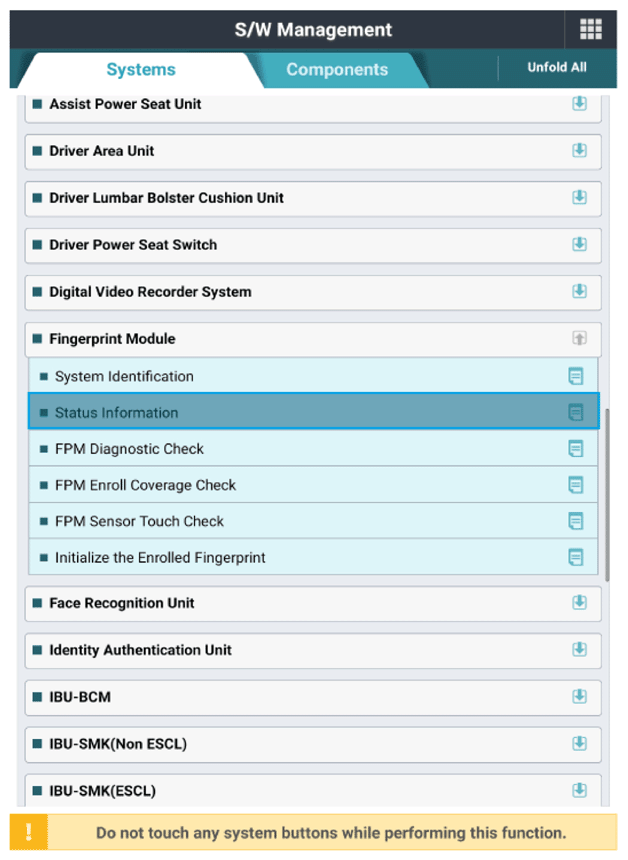

3. Select "Status Information".

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

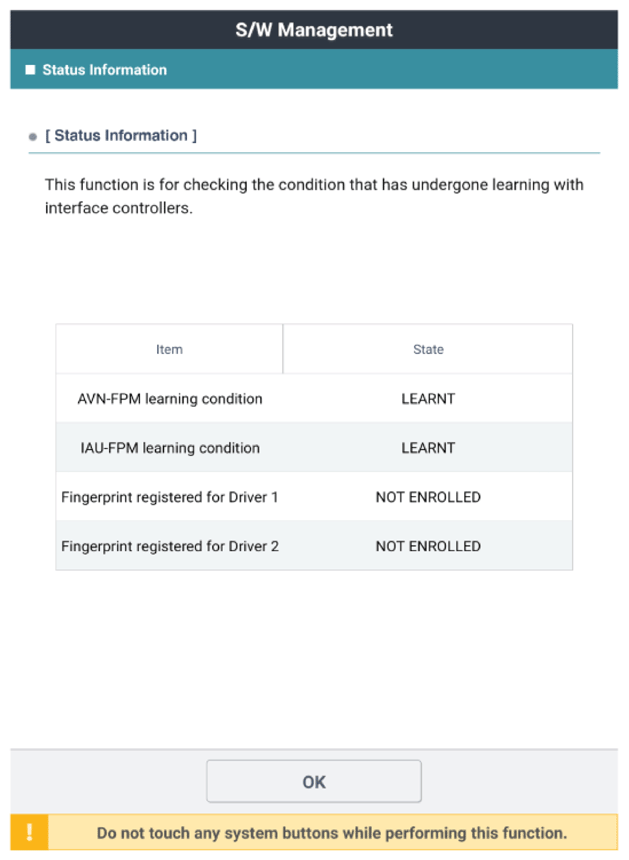

Information

• Learning completed is "LEARNT", and if learning is not carried out, it is indicated as "VIRGIN".
