Smart Key Antenna (Interior 1)

1. Disconnect the battery negative (-) terminal.
2. Remove the audio & AVN head unit.

   (Refer to Multimedia System - "AUDIO & AVN HEAD UNIT ")

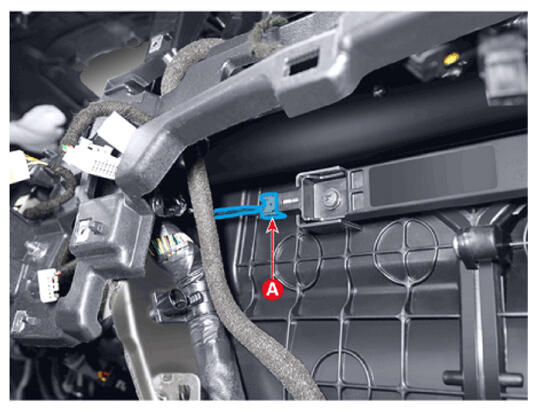

3. Disconnect the smart key antenna connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

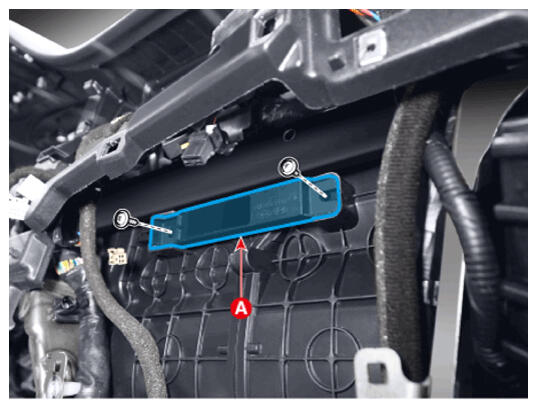

4. Remove the smart key antenna (A), after removing the screws.

   Courtesy of HYUNDAI MOTOR AMERICA

5. Install in the reverse order of removal.

Information

• Make sure the connector is connected properly.
