Smart Key Antenna (Interior 2)

1. Disconnect the battery negative (-) terminal.
2. Remove the floor console assembly.

   (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

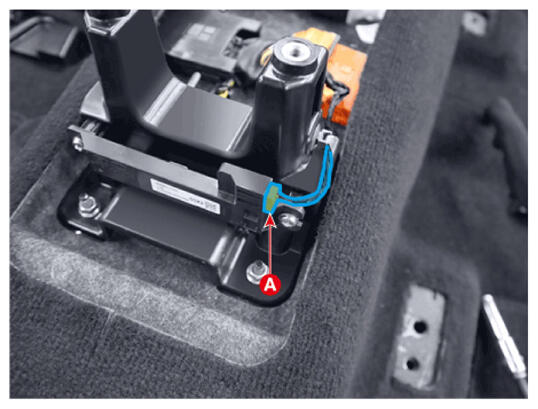

3. Disconnect the smart key antenna connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

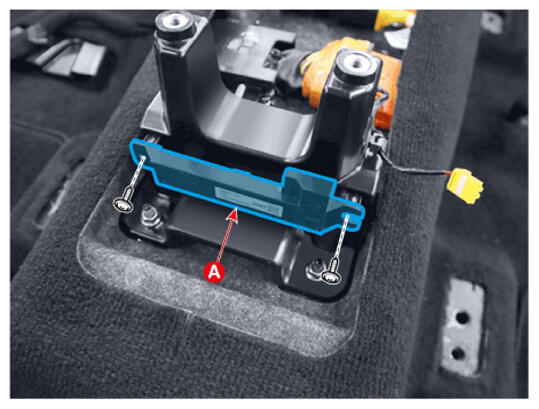

4. Remove the smart key antenna (A), after removing the screws.

   Courtesy of HYUNDAI MOTOR AMERICA

5. Install in the reverse order of removal.

Information

• Make sure the connector is connected properly.
