Removal And Installation
- Remove the crash pad garnish [LH].
(Refer to Body (Interior/Exterior/Electrical) - "CRASH PAD LOWER PANEL ")

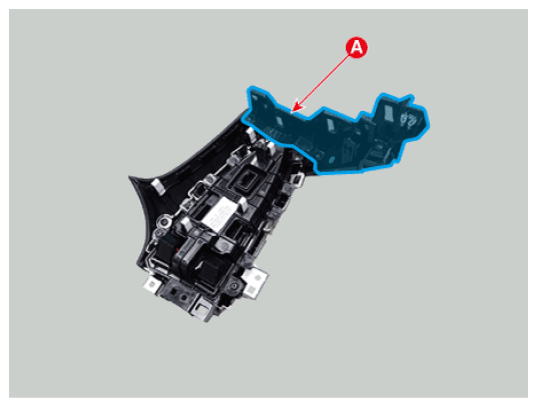

- Remove the bracket (A) after removing the screw.

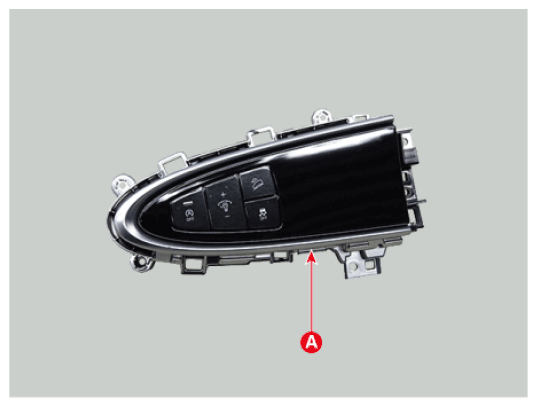

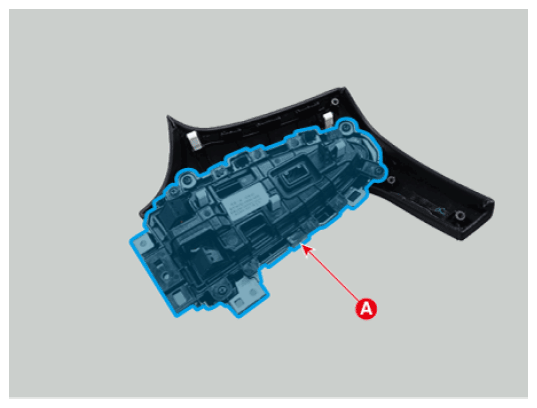

- Remove the ESC OFF switch (A) after removing the screw.
- Install in reverse order of removal.
Information
- Connect the connectors securely.
- Replace the damaged clips.
