Front Wheel Speed Sensor: Inspection

Measure the output voltage between the terminal of the wheel speed sensor and the body ground.

NOTE:

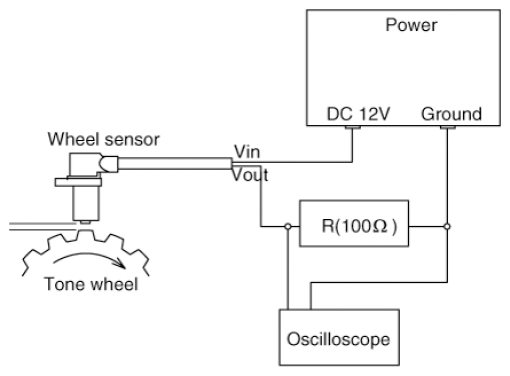

In order to protect the wheel speed sensor, when measuring output voltage, a 100 Ω resister must be used as shown.

G16818259

Courtesy of HYUNDAI MOTOR AMERICA

Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage as is shown below.

Courtesy of HYUNDAI MOTOR AMERICA
- Ilow: 7 ± 1.05 mA
- Ihigh: 14 ± 2.1 mA
- Frequency range: 0.03 - 3, 000 Hz
