Removal And Installation
- Disconnect the battery negative (-) terminal.
- Remove the front wheel and tires.
(Refer to Suspension System - "WHEEL ")
- Remove the front wheel guard.
(Refer to Body (Interior/Exterior/Electrical) - "WHEEL GUARD ")

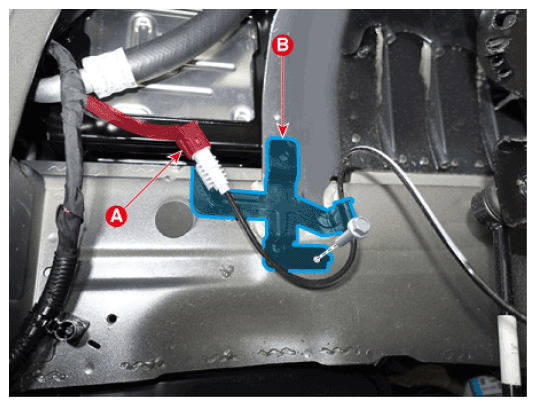

- Disconnect the front wheel speed sensor connector (A).
- Remove the front wheel speed sensor line bracket (B) after removing the bolt.
Tightening torque: 19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

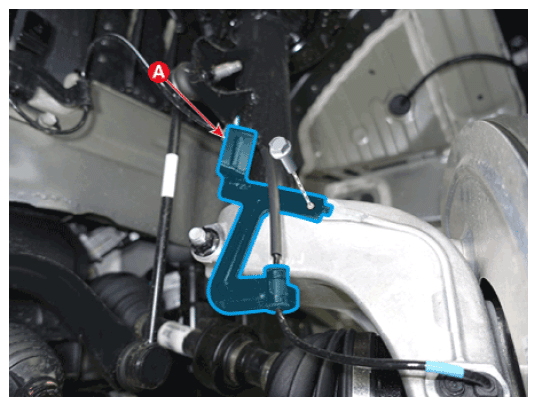

- Remove the front wheel speed sensor line bracket (A) after removing the bolt.
Tightening torque: 12.8 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb-ft)

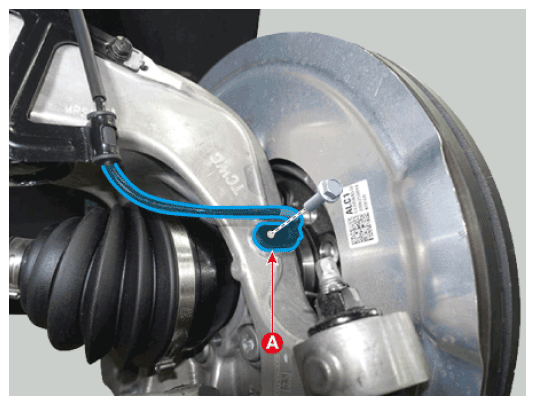

- Remove the front wheel speed sensor (A) after removing the bolt.
Tightening torque: 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
- Install in the reverse order of removal.
