Removal And Installation
- Disconnect the battery negative (-) terminal.
- Remove the rear wheel and tires.
(Refer to Suspension System - "WHEEL ")
- Remove the rear wheel guard.
(Refer to Body (Interior/Exterior/Electrical) - "WHEEL GUARD ")

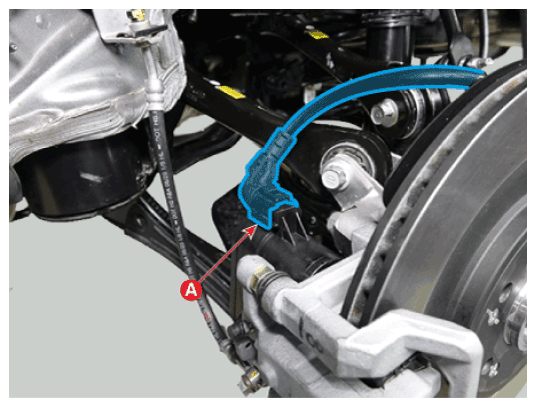

- Disconnect the EPB actuator connector (A).

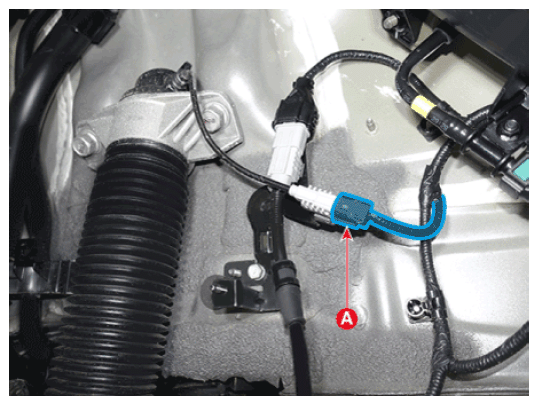

- Disconnect the rear wheel speed sensor connector (A).

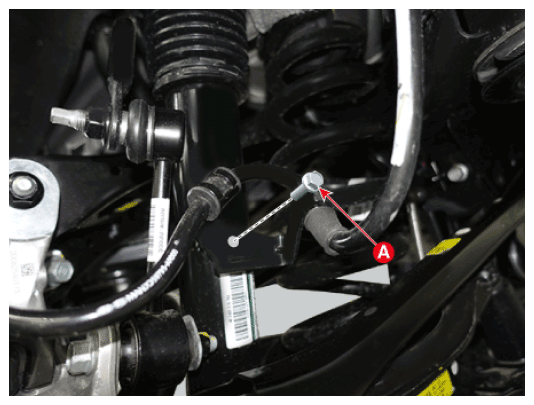

- Remove the wiring bracket after removing the bolt (A).
Tightening torque: 12.8 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb-ft)

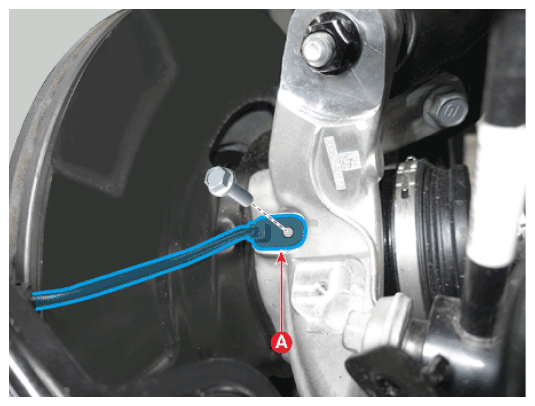

- Remove the rear wheel speed sensor (A) after removing the bolt.
Tightening torque: 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
- Install in the reverse order of removal.
