Variant Coding

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".

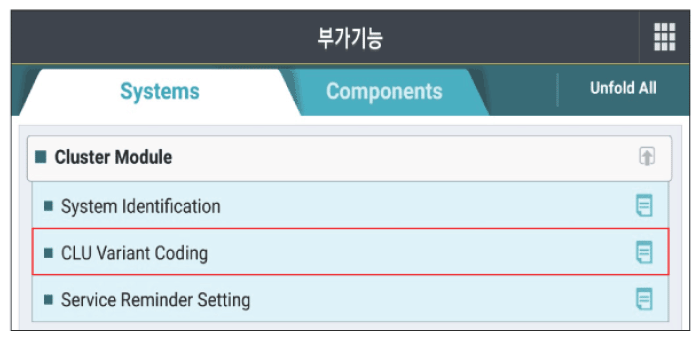

G16822757Courtesy of HYUNDAI MOTOR AMERICA

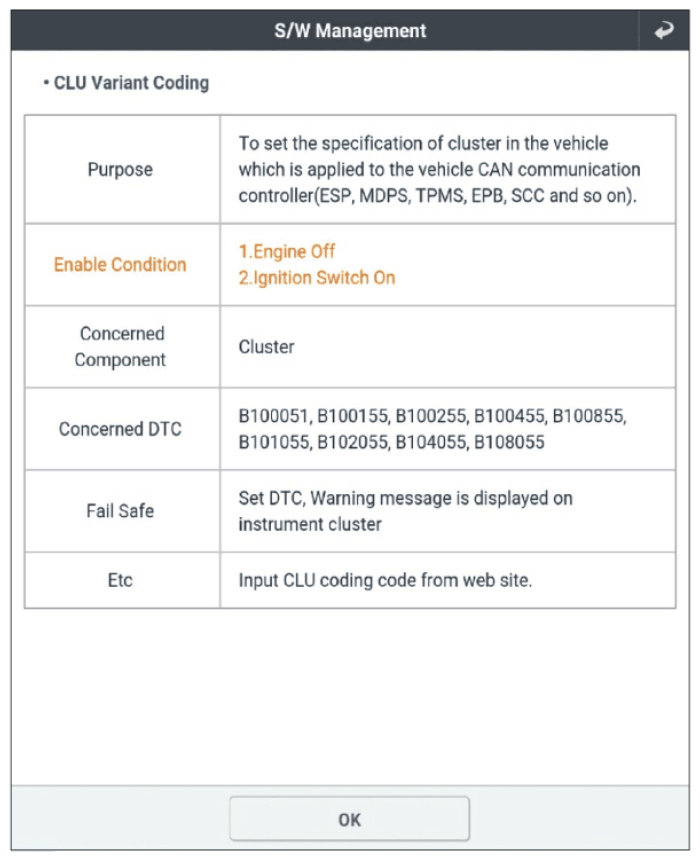

G16822758Courtesy of HYUNDAI MOTOR AMERICA

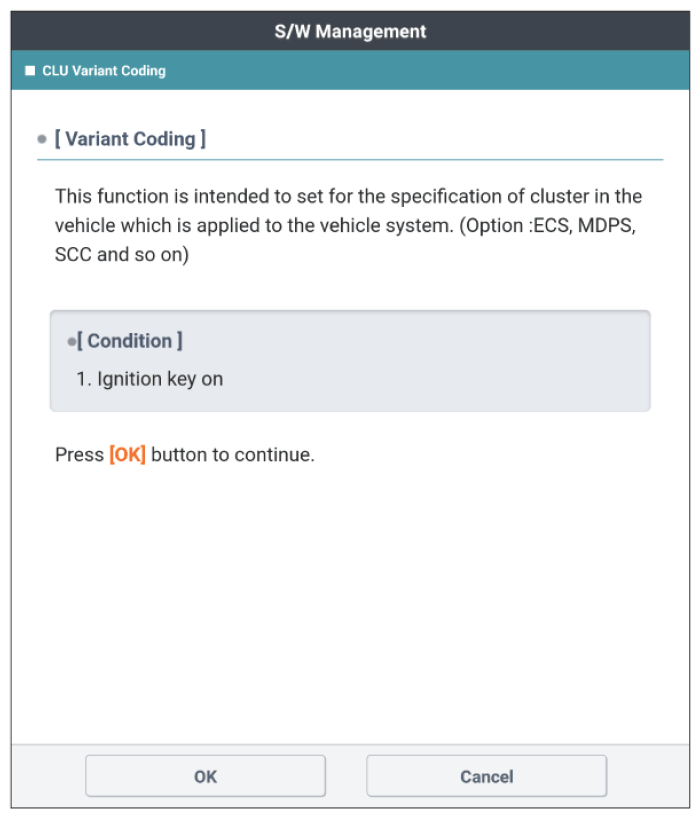

G16822759Courtesy of HYUNDAI MOTOR AMERICA

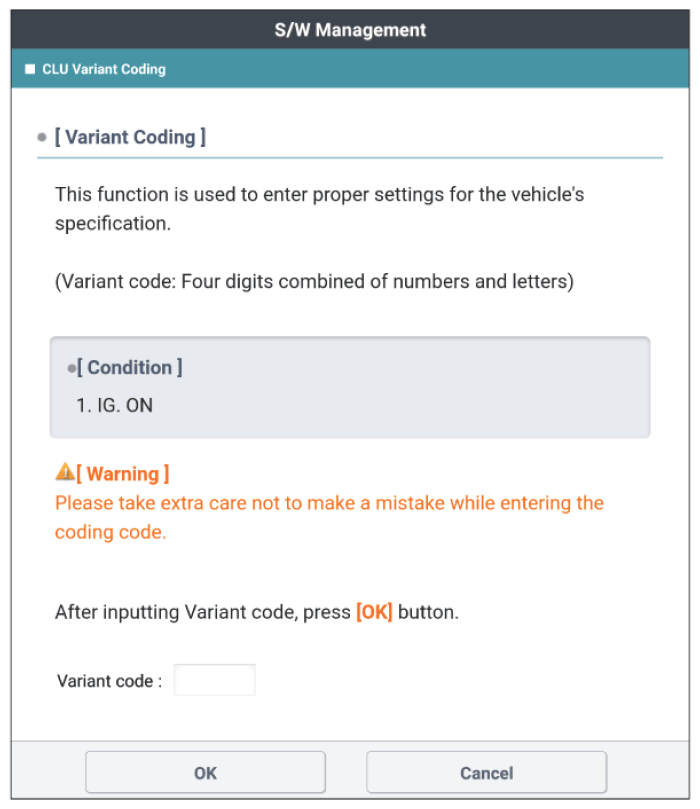

G16822760Courtesy of HYUNDAI MOTOR AMERICA

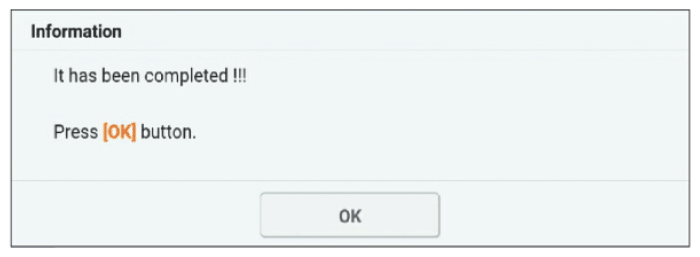

G16822761Courtesy of HYUNDAI MOTOR AMERICA
