Special Tool

Tool Name/No	Image	Description
High Voltage Battery System Assembly Transport Hanger 09375-K4100	Courtesy of HYUNDAI MOTOR AMERICA	Used to transfer the high voltage battery system assembly
High Voltage Battery Pack Transfer Hanger Fixing Handle 09375-K4104	Courtesy of HYUNDAI MOTOR AMERICA	Used to transfer the high voltage battery system assembly
Gap filler support fixture 09375-GI100	Courtesy of HYUNDAI MOTOR AMERICA	Used for applying the high voltage battery gap filler
Gap filler gun 09375-GI200	Courtesy of HYUNDAI MOTOR AMERICA	Used for applying the high voltage battery gap filler
Gap filler ribbon 09375-GI300	Courtesy of HYUNDAI MOTOR AMERICA	Used for applying the high voltage battery gap filler
Battery module hanger 09375-GI700	Courtesy of HYUNDAI MOTOR AMERICA	Used for transferring the sub battery pack assembly
Battery module guide 09375-GI900	Courtesy of HYUNDAI MOTOR AMERICA	Used for installing the battery module assembly on module disassembly jig
Battery module surface pressure jig 09375-GI800	Courtesy of HYUNDAI MOTOR AMERICA	Used for pressing the battery module assembly

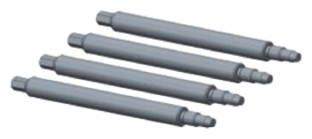

Guide pins for installing the high voltage battery system assembly 09375-BF000	Courtesy of HYUNDAI MOTOR AMERICA	Used for installing the high voltage battery system assembly.
Insulate tool set 09090-09000	Courtesy of HYUNDAI MOTOR AMERICA	When working the high voltage system component

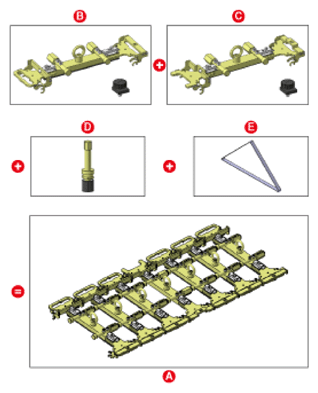

High voltage battery module hanger SET 09375-BF300 High voltage battery module hanger (Handle Type) + Cover adapter 09375-BF301 High voltage battery module hanger (Avoidance Type) + Cover adapter 09375-BF302 High voltage battery module separation bolt 09375-BF303 Sling belt 09375-BF304	Courtesy of HYUNDAI MOTOR AMERICA	Used for transferring the sub battery pack assembly (Sub-BPA) or battery module assembly (BMA)
