Inverter Assembly: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Be careful not to bend the inverter assembly gasket is a metal gasket.
    • Use a gasket with a new one.

    [Front Inverter Assembly]

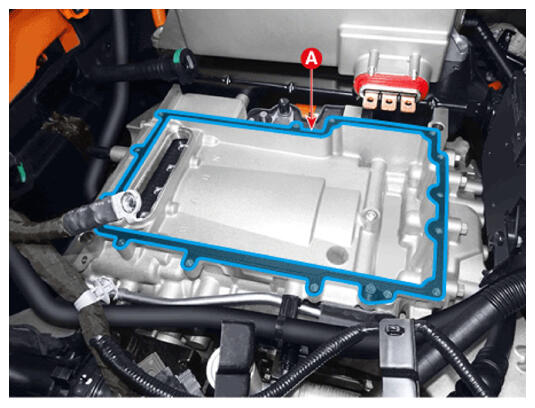

    G16820719Courtesy of HYUNDAI MOTOR AMERICA

    [Rear Inverter Assembly]

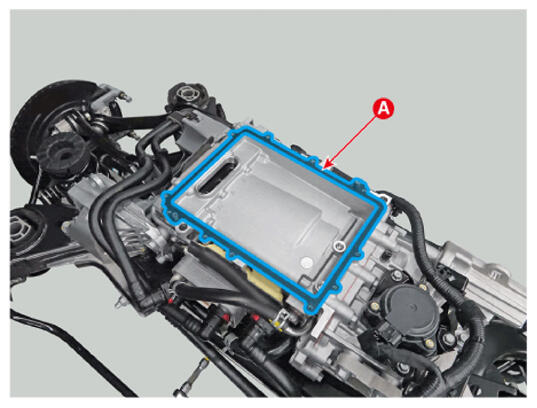

    G16820720Courtesy of HYUNDAI MOTOR AMERICA
  2. Perform the air tightness inspection after installing the inverter and high voltage junction block.

    (Refer to Motor and Reduction Gear System - "AIR TIGHTNESS INSPECTION ")
