[OCS Reset Procedure]
- Connect the vehicle and the diagnostic tool.NOTE:
- In order to use the diagnostic tool normally, the vehicle status is maintained at "ACC ON". (Avoid system errors)
- Be careful of battery discharge when using the diagnostic tool.

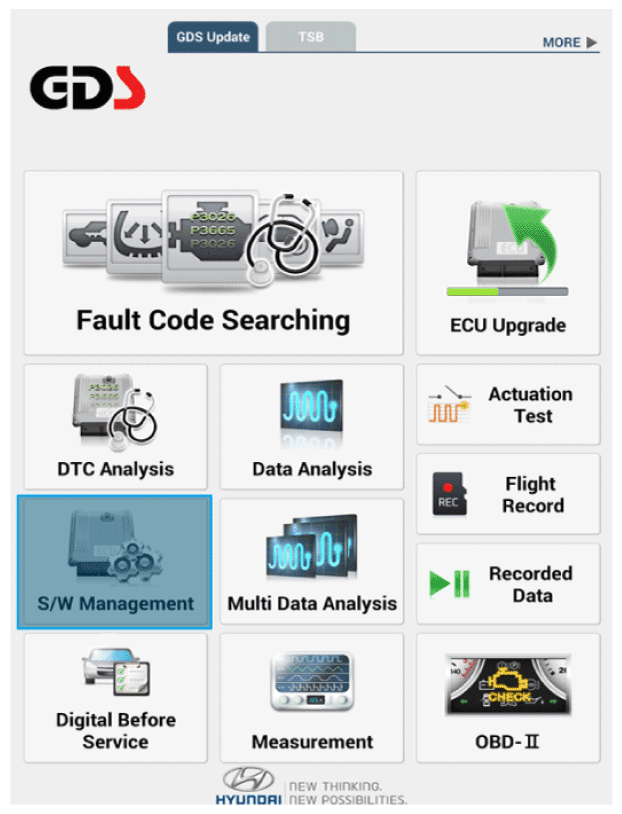

- Select the "S/W Management".
- Select "OCS" and "Body Sensor Reset".
Information
- Additional procedures follow the instructions of the diagnostic tool.
- Perform the "Body sensor reset" procedure according to the diagnostic tool screen message.CAUTION:
- After initializing the OCS sensor unit, erase DTC regarding the SRSCM and the OCS sensor unit.
NOTE:- Refer to the DTC repair information for details in incidental DTC.
DTC Code Code Name Description B176300 Fault in OCS unit Not initialized, faulty OCS sensor unit damaged B176400 Fault in OCS OCS sensor unit, sensor connector not connected OCS sensor damaged B17672F Algorithm cut-off Failure due to moisture Failure due to electronic devices B111117 Ignition switch current high Ignition switch current high B111216 Ignition switch current low Ignition switch current low B160388 CAN communication OFF Failure in CAN communication line B169787 Communication failure in SRSCM Failure in CAN communication
