Integrated Central control Unit: Function

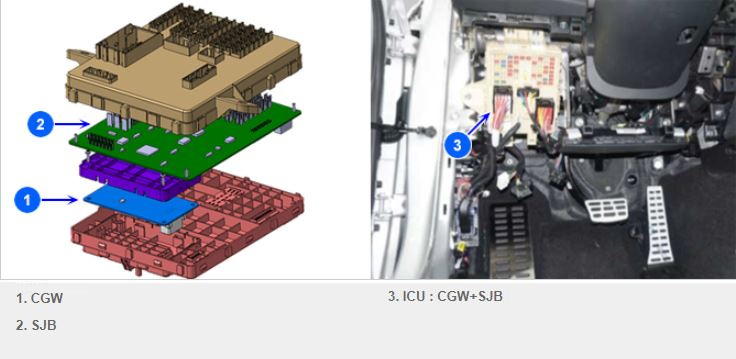

ICU* has a built-in GCW* and SJB*. The GCW* enables CAN network communication between controllers sending and receiving data using different protocols.
| Component | Name_ETM | Description | ETM |
|---|---|---|---|
| ICU* CGW SJB |
→ "ICU JUNCTION BLOCK" → "ICU JUNCTION BLOCK_IPS CONTROL MODULE" → "ICU JUNCTION BLOCK" |
→ [CGW+SJB] Integrated Central control Unit → Central Gate Way → Smart Junction Block |
SD200-2 SD200-3 SD200-5 SD200-7 SD200-8 SD200-16 |
| 4WD | "4WD ECM" | 4 Wheel Drive | SD200-4 |
| ABS ESC EPB |
"ESP CONTROL MODULE" | → Anti-lock Braking System → Electronic Stability Control → Electronic Parking Brake |
SD200-2 SD200-3 SD200-4 |
| ACU | "SRS CONTROL MODULE" | Air Bag Control Unit | SD200-2 SD200-3 SD200-4 |
| E-CALL | "EMERGENCY CALL" | Emergency Call | SD200-5 SD200-16 |
| AMP | "AMP" | external Amplifier | SD200-16 |
| AV/AVN | "A/V & NAVIGATION HEAD UNIT" | Audio Video/Audio Video Navigation | SD200-5 SD200-16 |
| "AUDIO" | |||
| AVM | "SURROUND VIEW MONITOR" | Around View Monitor | SD200-2 SD200-3 |
| BCW | "BLIND-SPOT COLLISION WARNING UNIT LH" | Blind-Spot Collision Warning | SD200-2 SD200-3 |
| CLU | "INSTRUMENT CLUSTER" | Instrument cluster | SD200-2 SD200-3 SD200-16 |
| DATC | "FRONT A/C CONTROL MODULE" | Dual Automatic Temperature Control | SD200-5 |
| DDM | "DRIVER DOOR AREA UNIT" | Driver Door Module | SD200-7 SD200-8 |
| EMS | "ECM" | Engine Control Module, Engine Management System | SD200-5 |
| "PCM" | Powertrain Control Module, Engine & Transmission control module | ||
| ESP ABS EPB |
"ESP CONTROL MODULE" | → [ABS+ESP+EPB] Electronic Stability Program → Anti-lock Braking System → Electronic Parking Brake |
SD200-2 SD200-3 SD200-4 |
| FCA | "FRONT RADAR UNIT" | Forward Collision-Avoidance Assist | SD200-2 SD200-3 |
| HUD | "HEAD UP DISPLAY" | Head Up Display | SD200-2 SD200-3 SD200-16 |
| FPCM | "Fuel Pump Control Module" | Fuel Pump Control Module | SD200-5 |
| IBU BCM TPMS SMK |
"IBU" | → [BCM+TPMS+SMK] Integrated Body control Unit → Body Control Module → Tire Pressure Monitoring System → Smart Key control module |
SD200-5 SD200-7 SD200-8 |
| LDWS | "MULTI FUNCTION CAMERA UNIT" | Lane Keeping Assist System | SD200-2 SD200-3 |
| LVR | "ELECTRONIC ATM SHIFT LEVER" | shift LeVeR_PRND position, Shift by Wire | SD200-5 |
| MDPS | "MDPS UNIT" | Motor Driven Power Steering | SD200-2 SD200-3 |
| AHS | "Active Hood Lift Control Module" | Active Hood Lift System | SD200-6 |
| AAF | "ACTIVE AIR FLAP" | Active Air Flap | SD200-6 |
| PSM | "DRIVER IMS CONTROL MODULE" | Power Seat Module | SD200-7 SD200-8 |
| PTM | "POWER TRUNK MODULE" | Power Trunk Module | SD200-7 SD200-8 |
| PTGM | "POWER TAIL GATE UNIT" | Power Tail Gate Module | SD200-7 SD200-8 |
| IFS | "Intelligent Front-lighting System" | Intelligent Front-lighting System | SD200-2 SD200-3 |
| ECS | "Electronic Control Suspension" | Electronic Control Suspension | |
| RVM | "REAR VIEW MONITORING SYSTEM" | Rear View Camera | |
| SAS | "STEERING ANGLE SENSOR" | Steering Angle Sensor | |
| SCC | "FRONT RADAR UNIT" | Smart Cruise Control | |
| EOPU | "Electronic Oil Pump control Unit" | Electronic Oil Pump control Unit | SD200-5 |
| TCU | "PCM" | Power-train Control Module | SD200-5 |
| "TCM" | Transmission Control Unit | ||
| WPC | "FRONT WIRELESS CHARGER" | Wireless Power Charger | SD200-7 SD200-8 |
