Genesis
>>
2023
>>
G70 2.0T, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.0L
>>
CVVT Oil Control Valve (OCV) [Bank1-Exhaust]
>>
Schematic Diagrams
>>

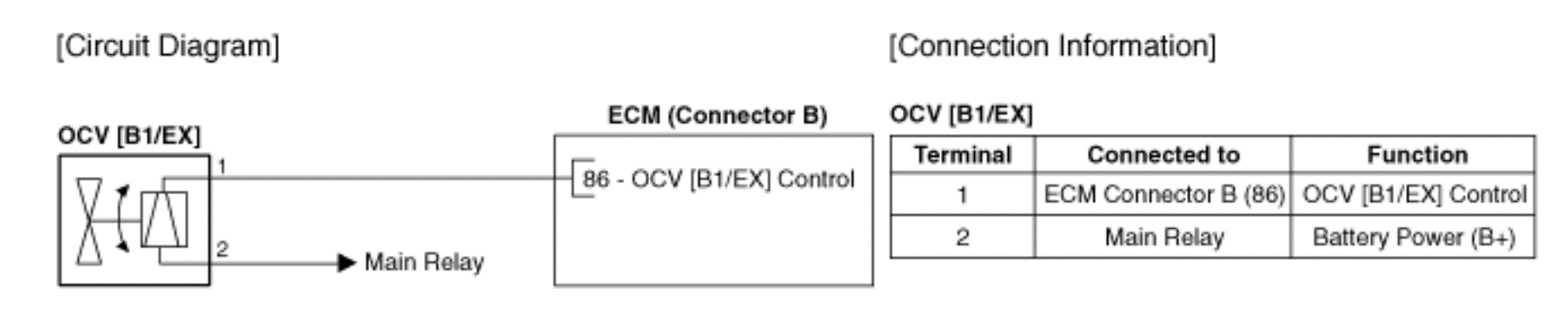

Circuit Diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram: Notes
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
