Diagnostic Flow-chart

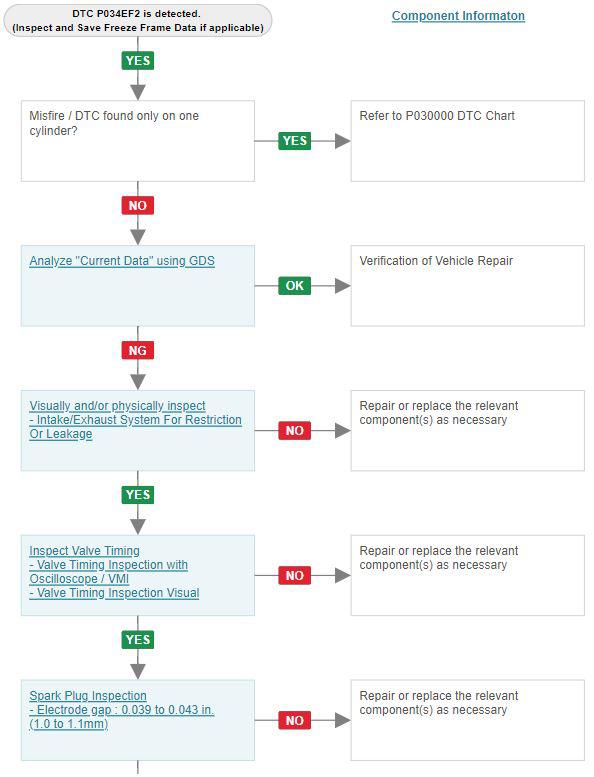

Fig 1: P034E-F2 (1 Of 2)
G15556278Courtesy of HYUNDAI MOTOR AMERICA

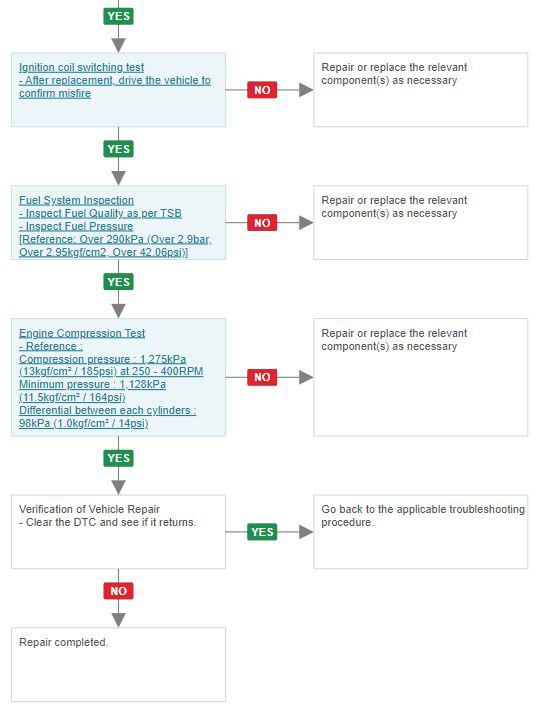

Fig 2: P034E-F2 (2 Of 2)
G00638652Courtesy of HYUNDAI MOTOR AMERICA
