Engine Control System Diagnosis - 2.5L (5 Of 6)
>>
DTC P06DB-00: Engine Oil Pressure Control Circuit Low
>>
Troubleshooting
>>
Diagnostic Flow-chart
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.

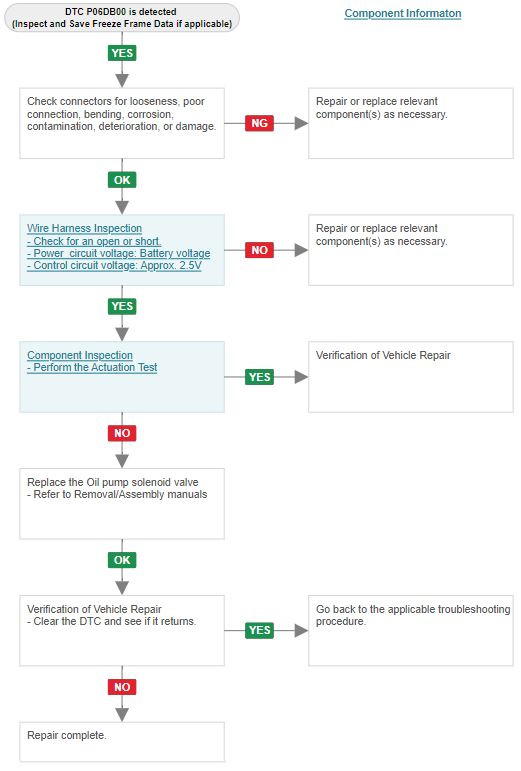

Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
