Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

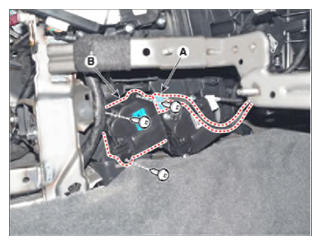

  3. Disconnect the console mode actuator connector (A) and loosen the mounting screw and then remove the console mode actuator (B).
    G15555134Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
