Components And Components Location: Component

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

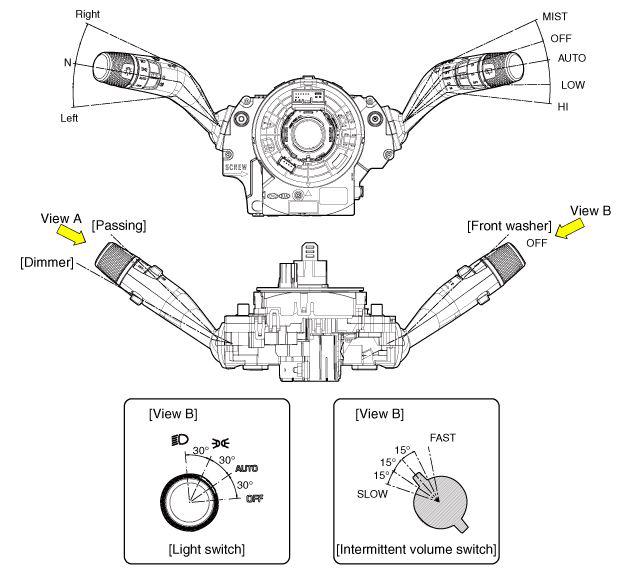

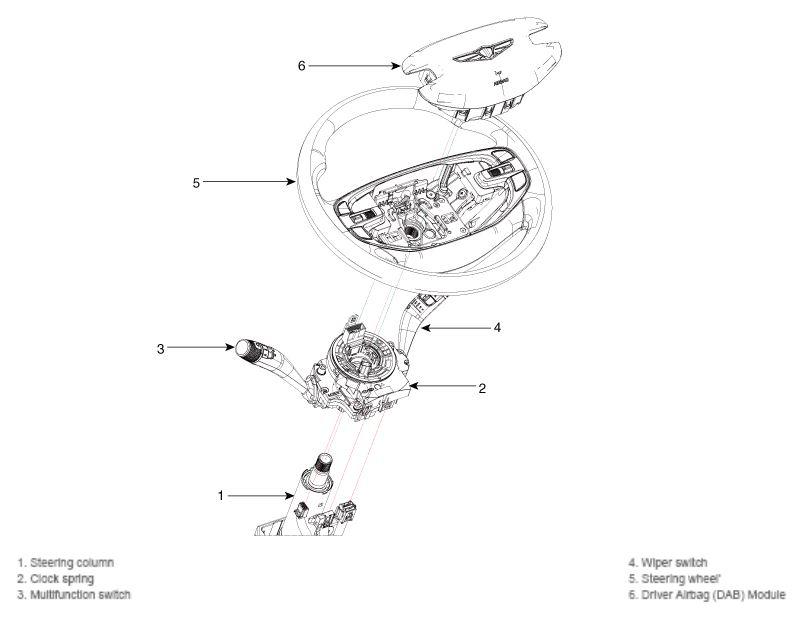

Connector	NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Front washer signal
	2	-
	3	Headlamp low back up signal
	4	Light/Wiper switch ground
	5	Front wiper low back up signal
	6	Front wiper low back up power
	7	CAN-FD High
	8	CAN-FD Low
	9	IGN 1
	10	B-CAN High
	11	B-CAN Low
	12	Battery (+)
