Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper.

    (Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")

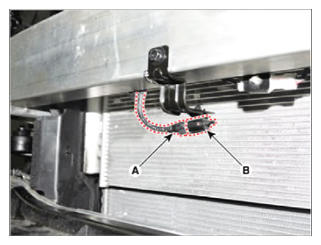

  3. Press the lock pin and disconnect the connector (A), remove the ambient temperature sensor (B).
    G15555054Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
