Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Put on gloves to prevent hand injuries.
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  1. Disconnect the negative (-) battery terminal.

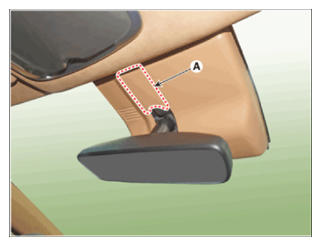

  2. Remove the inside rear view mirror cover (A).
    G15555055Courtesy of HYUNDAI MOTOR AMERICA

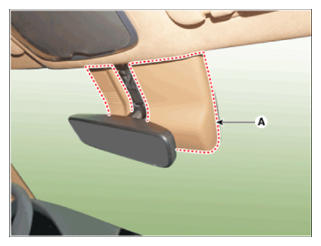

  3. Remove the rain sensor cover (A).
    G15555056Courtesy of HYUNDAI MOTOR AMERICA
  4. Press the lock pin and disconnect the auto defogging sensor connector (A).
    G15555057Courtesy of HYUNDAI MOTOR AMERICA

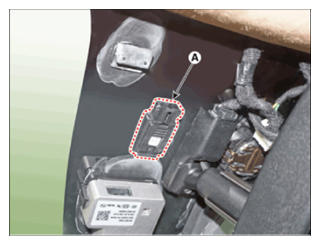

  5. Remove the auto defogging sensor (A).
    G15555058Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
    CAUTION:
    • Carefully remove and refit the windshield glass.
