Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crash pad center panel.

    Refer to Body (Interior and Exterior - "CRASH PAD CENTER PANEL "

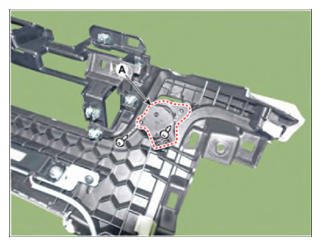

  2. Loosen the mounting screws, remove the in-car sensor (A).
    G15555049Courtesy of HYUNDAI MOTOR AMERICA
  3. Install in the reverse order of removal.
