Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Disconnect the memory power seat switch connector (A).
    G14754755Courtesy of HYUNDAI MOTOR AMERICA

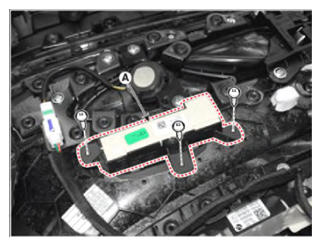

  4. Disconnect the IMS switch connector and then remove the IMS switch (A).
    G14754756Courtesy of HYUNDAI MOTOR AMERICA
